Air Cleaner Assembly

  1. Disconnect the battery negative terminal.

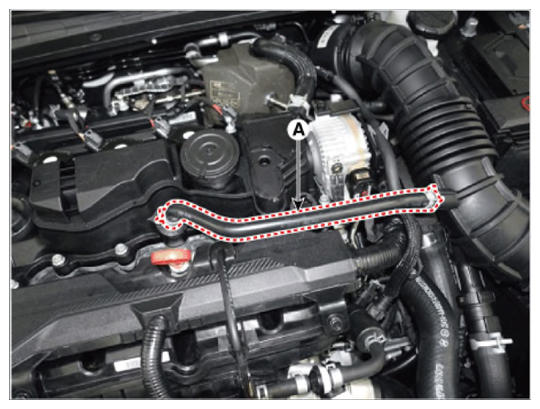

  2. Disconnect the breather hose (A).
    G14596095Courtesy of HYUNDAI MOTOR AMERICA

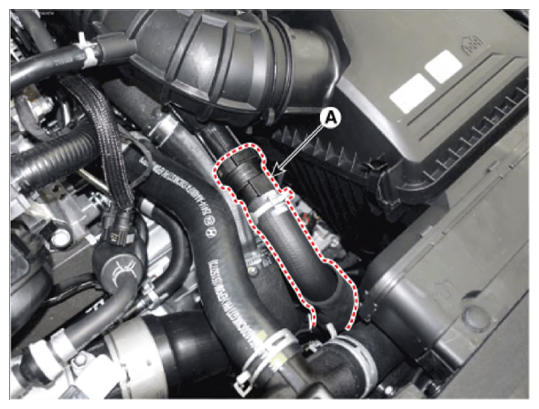

  3. Disconnect the RCV hose (A).
    G14596096Courtesy of HYUNDAI MOTOR AMERICA

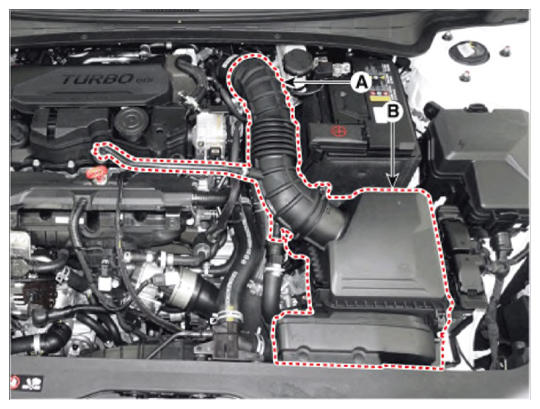

  4. Disconnect the air intake hose (A), and then remove the air cleaner assembly (B).

    Tightening torque:

    Intake hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb-ft)

    Air cleaner assembly: 3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

    G14596097Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:

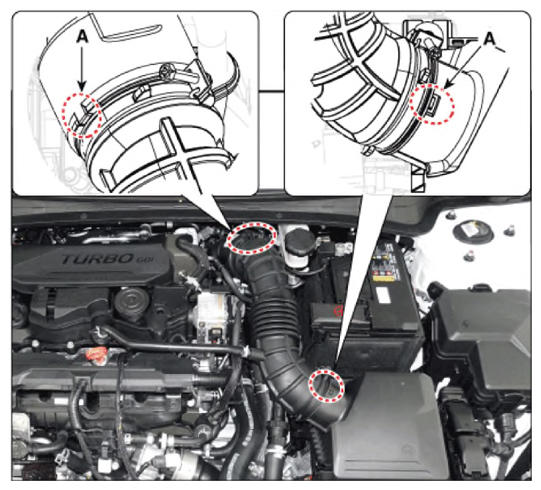

    • When assembling the intake hose, match the alignment marks (A).
      G14596098Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
