Repair Procedures: Replacement
CAUTION:
- When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
- Remove the rear tire.

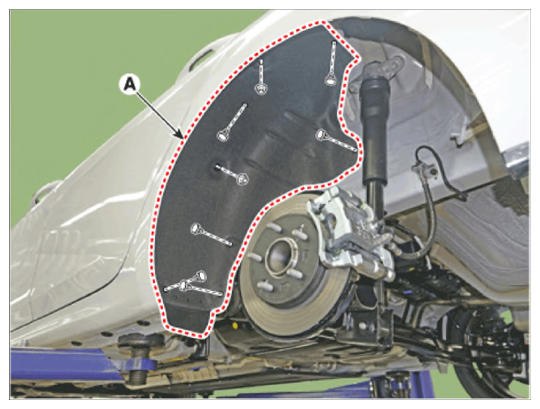

- After loosening the mounting screws, clips and nut, remove the rear wheel guard [Rear] (A).

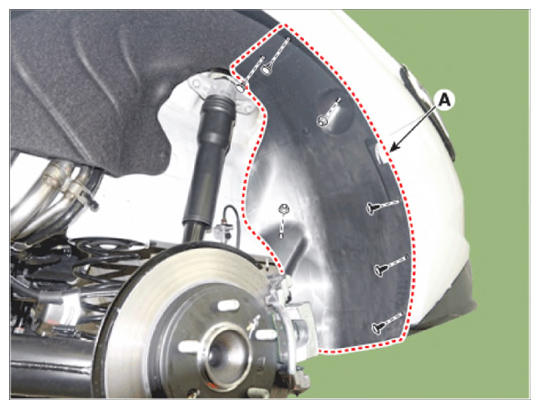

- After loosening the mounting screws, clips and nut, remove the rear wheel guard [Front] (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
