Repair Procedures: Replacement

CAUTION:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the trunk lid back panel. (Refer to Trunk Lid - "TRUNK LID BACK PANEL ")

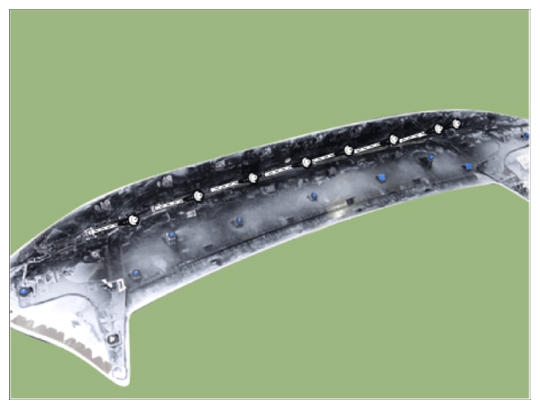

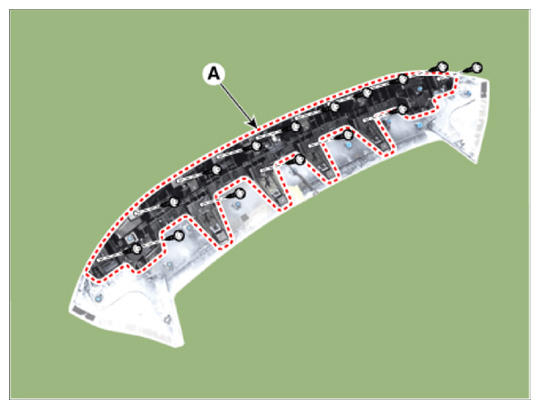

Loosen the mounting screws, remove the trunk lid back panel bracket (A).

Courtesy of HYUNDAI MOTOR AMERICA

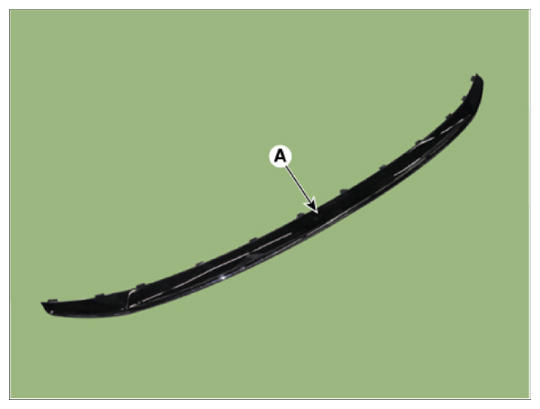

Loosen the mounting screws, remove the rear spoiler (A).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
