Repair Procedures: Replacement

CAUTION:
  • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.

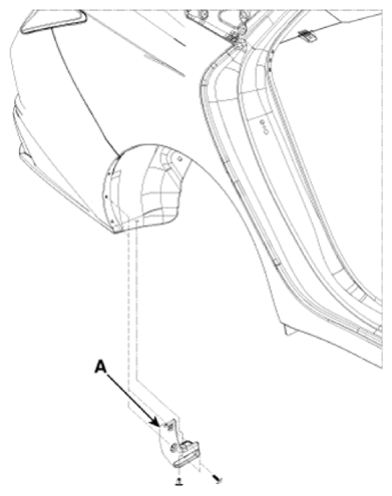

  1. After loosening the mounting screws and remove the rear mud guard (A).
    G14599433Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse the removal procedure.

    Information

    • Replace any damaged clips (or pin - type retainers).
