Repair Procedures: Replacement

CAUTION:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

Remove the front tire.

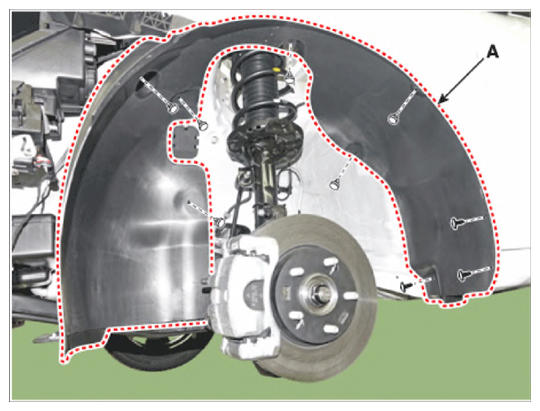

After loosening the mounting clips and remove the front wheel guard (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
