4.2 TFF LCD [RHD]

NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  1. Disconnect the negative (-) battery terminal.

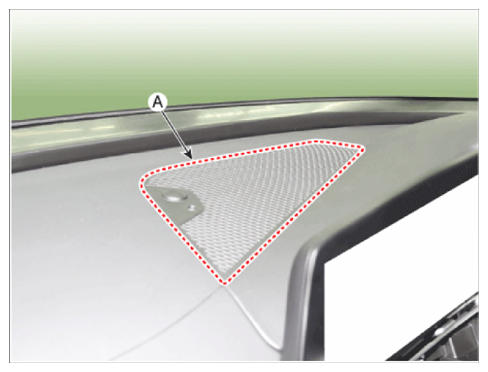

  2. Using a flat-tip screwdriver or remover, remove the photo sensor cover (A).
    G14600200Courtesy of HYUNDAI MOTOR AMERICA

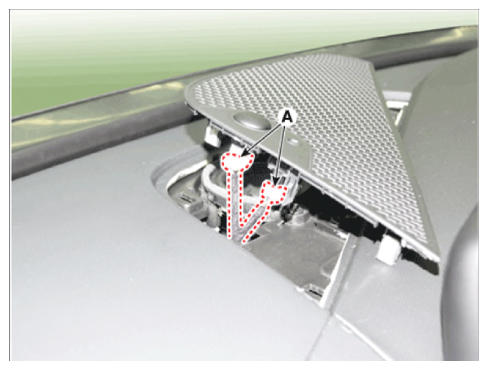

  3. Disconnect photo sensor connector and security sensor connector (A).
    G14600201Courtesy of HYUNDAI MOTOR AMERICA

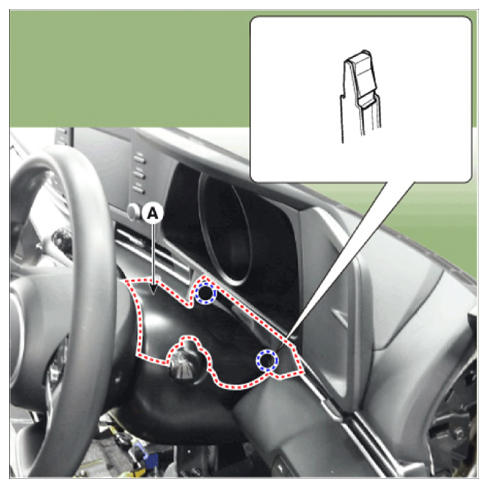

  4. Using a flat-tip screwdriver or remover, remove the steering column shroud upper panel (A).
    G14600202Courtesy of HYUNDAI MOTOR AMERICA

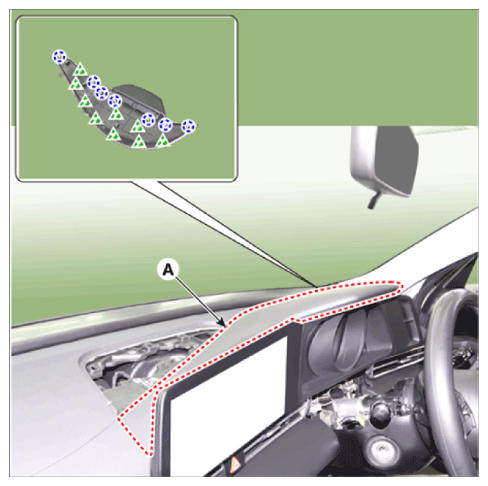

  5. Using a flat-tip screwdriver or remover, remove the cluster fascia upper garnish (A).
    G14600203Courtesy of HYUNDAI MOTOR AMERICA

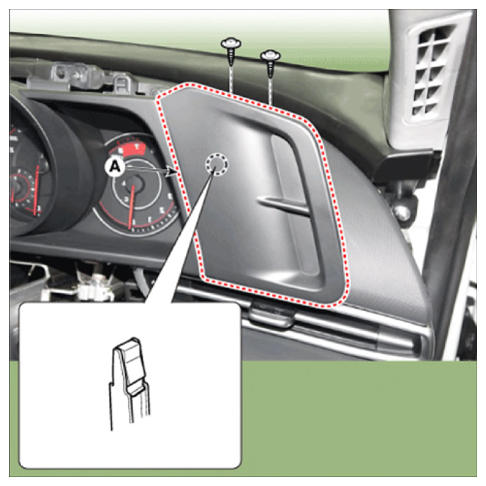

  6. Remove the cluster fascia side panel (A) after mounting screws.
    G14600204Courtesy of HYUNDAI MOTOR AMERICA

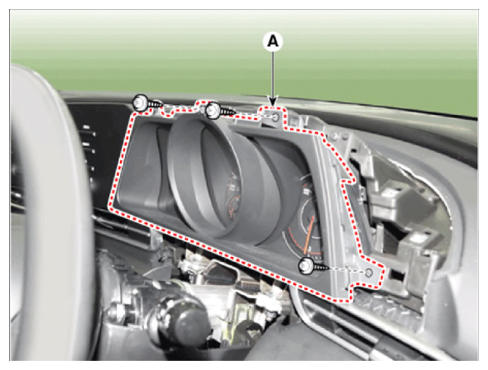

  7. Remove the cluster fascia panel (A) after loosening mounting screws.
    G14600205Courtesy of HYUNDAI MOTOR AMERICA

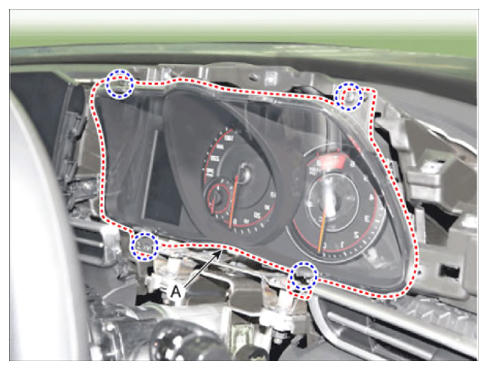

  8. Remove the instrument cluster (A) after loosening mounting screws.
    G14600206Courtesy of HYUNDAI MOTOR AMERICA

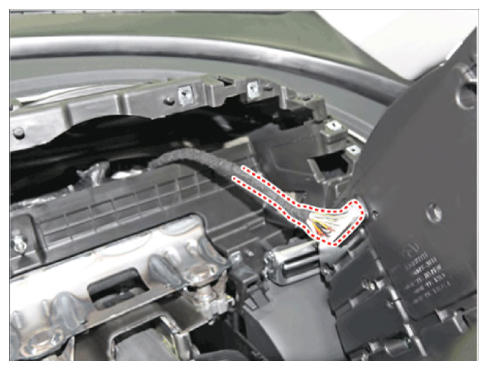

  9. Remove the instrument cluster after disconnect cluster connectors.
    G14600207Courtesy of HYUNDAI MOTOR AMERICA
