10.25" TFT LCD

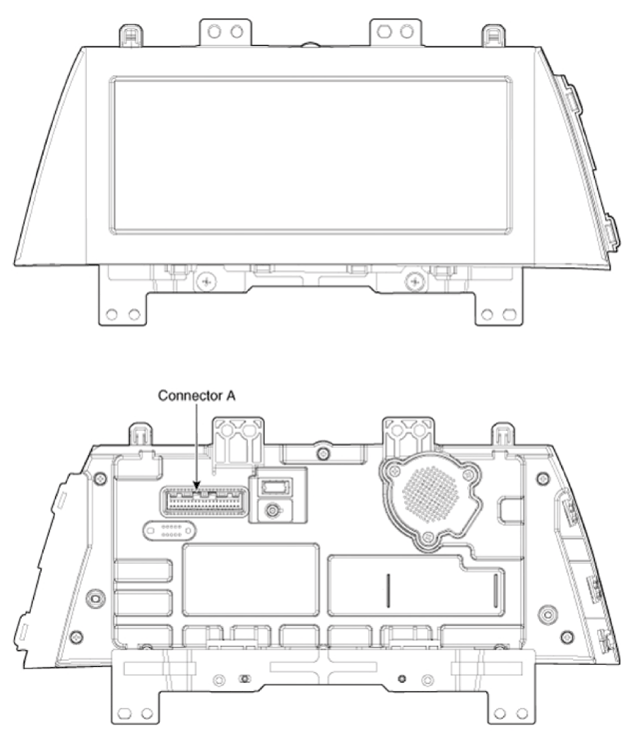

Connector Pin Information

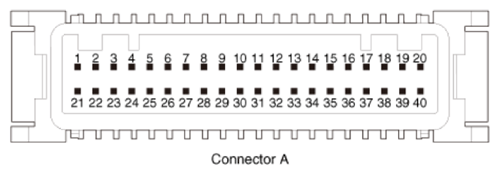

CONNECTOR PIN INFORMATION DESCRIPTION
| No | Description |
|---|---|
| 1 | GND |
| 2 | Illumination (-) |
| 3 | Rheostat switch (Down)_Input |
| 4 | Rheostat switch (Up)_Input |
| 5 | Detent |
| 6 | AT ('P' Position) |
| 7 | AT ('R' Position) |
| 8 | AT ('N' Position) |
| 9 | AT ('D' Position) |
| 10 | AT ('S' Position) |
| 11 | Immobilizer_input |
| 12 | Vehicle speed_Input |
| 13 | Alternator_Input |
| 14 | Fuel sender (+)_Input |
| 15 | Vehicle speed_Output |
| 16 | Fuel sender (-)_Input |
| 17 | Water Separator_input |
| 18 | - |
| 19 | Oil press switch_Input |
| 20 | - |
| 21 | Trip switch (-)_Input |
| 22 | Trip switch 1 (+)_Input |
| 23 | Trip switch 2 (+)_Input |
| 24 | Low washer level_input |
| 25 | Driver mode switch_Input (AT only) |
| 26 | - |
| 27 | - |
| 28 | MT ('N' Position) |
| 29 | Multimedia-CAN (Low) |
| 30 | Multimedia-CAN (High) |
| 31 | Engine run state_output |
| 32 | Chassis-CAN (High) |
| 33 | Chassis-CAN (Low) |
| 34 | Auto lever manual (+)_input |
| 35 | Auto lever manual (-)_input |
| 36 | - |
| 37 | GND |
| 38 | - |
| 39 | IGN 1 |
| 40 | Battery (+) |
