Steering Column Shroud Upper Panel

CAUTION:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

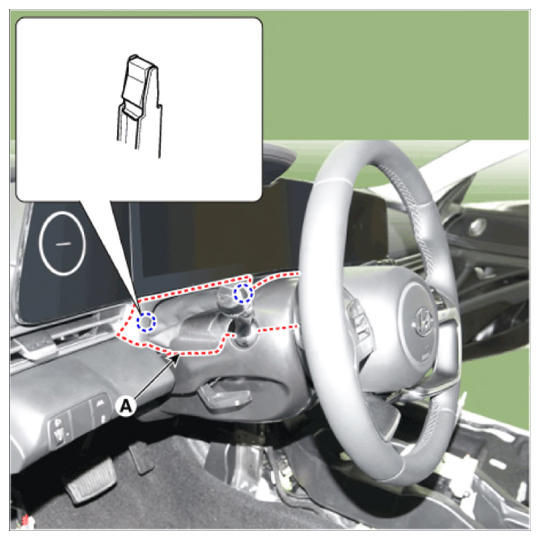

Using a screwdriver or remover, remove the steering column shroud upper panel (A).

Courtesy of HYUNDAI MOTOR AMERICA

CAUTION:

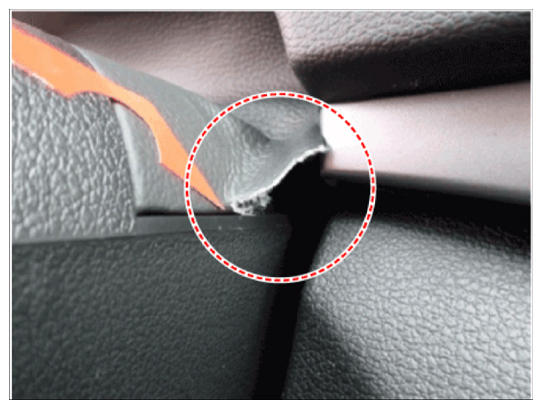

When removing the shroud upper panel, excessive force may be cause the leather to tear.

Courtesy of HYUNDAI MOTOR AMERICA

To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
