Steering Column Shroud Lower Panel
CAUTION:
- When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Remove the crash pad lower panel. (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

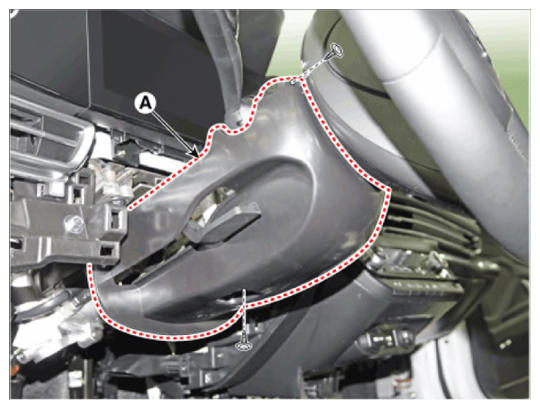

- Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
