Repair Procedures: Replacement

CAUTION:
  • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
NOTE:
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console assembly. (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
  3. Remove the front pillar trim.

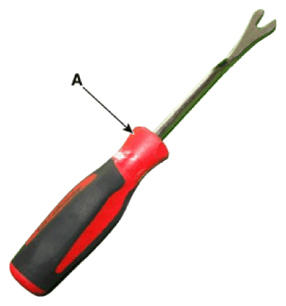

    1. To remove the front pillar trim, the fastener remover (A) below must be used.
      G14599579Courtesy of HYUNDAI MOTOR AMERICA

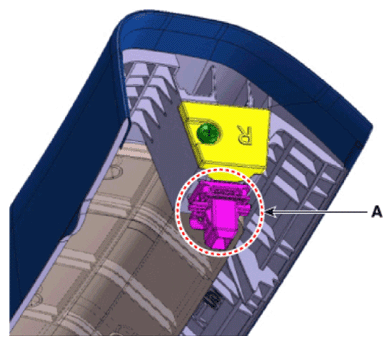

    2. After slightly lifting up the front pillar trim and putting the tool in, remove the mounting clip (A) by pulling it.

      Information

      • Be sure to replace the existing clips with new ones when removing or replacing the front pillar trim.
      G14599580Courtesy of HYUNDAI MOTOR AMERICA

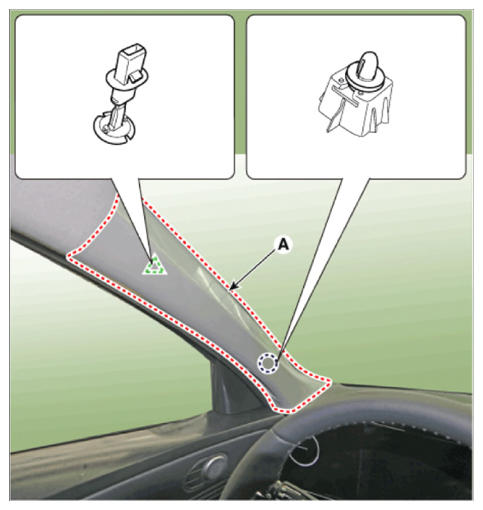

    3. Remove the front pillar trim (A).

    [LH]

    G14599581Courtesy of HYUNDAI MOTOR AMERICA

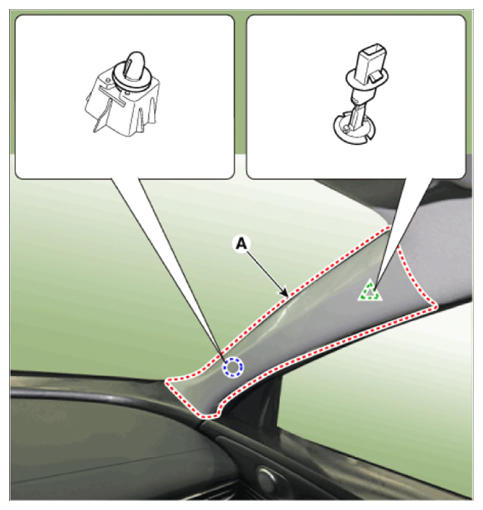

    [RH]

    G14599582Courtesy of HYUNDAI MOTOR AMERICA
  4. Detach the clips, then remove the front door body side weatherstrip (A).

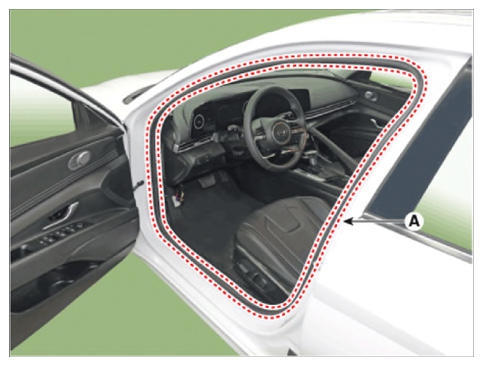

    [LH]

    G14599583Courtesy of HYUNDAI MOTOR AMERICA

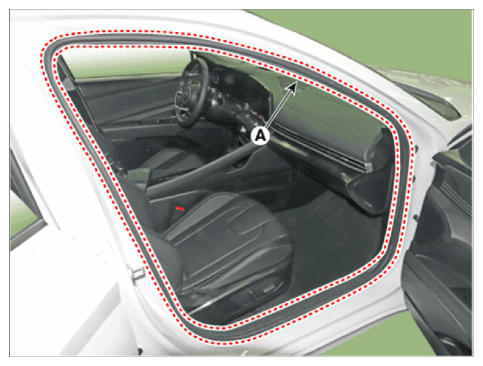

    [RH]

    G14599584Courtesy of HYUNDAI MOTOR AMERICA

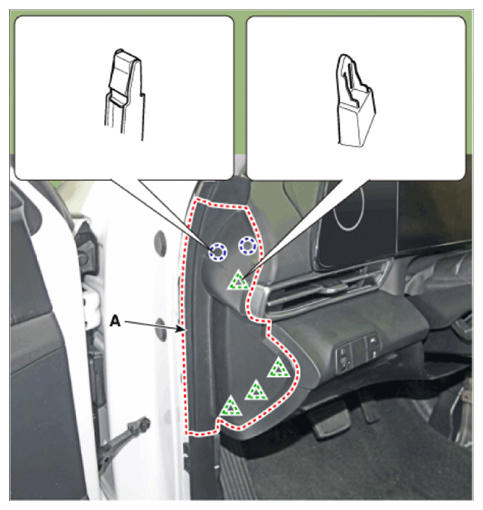

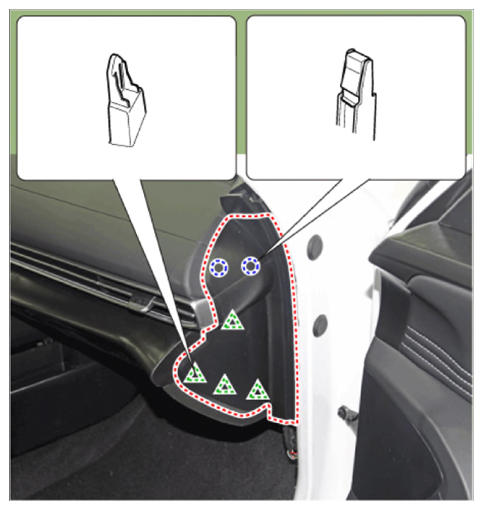

  5. Using a screwdriver or remover, remove the crash pad side cover (A).

    [LH]

    G14599585Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    G14599586Courtesy of HYUNDAI MOTOR AMERICA

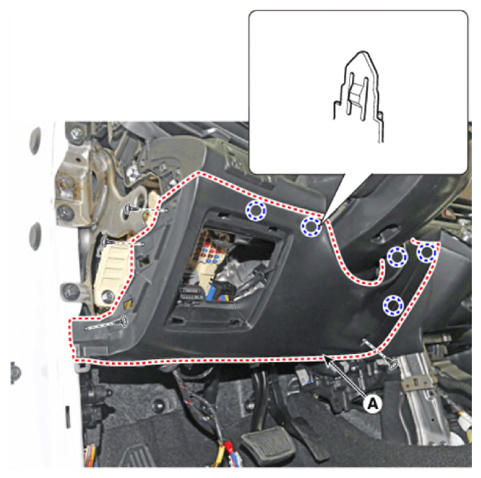

  6. Loosen the mounting screws, remove the crash pad lower panel (A).
    G14599587Courtesy of HYUNDAI MOTOR AMERICA

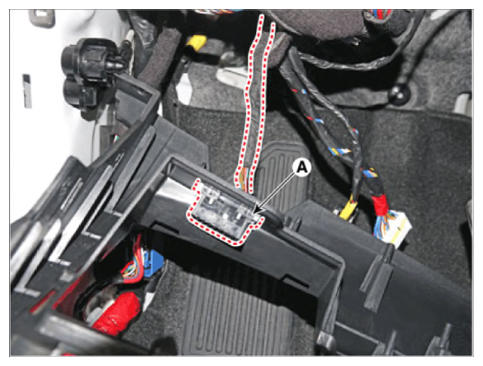

  7. Press the lock pin, separate diagnosis connector (A).
    G14599588Courtesy of HYUNDAI MOTOR AMERICA

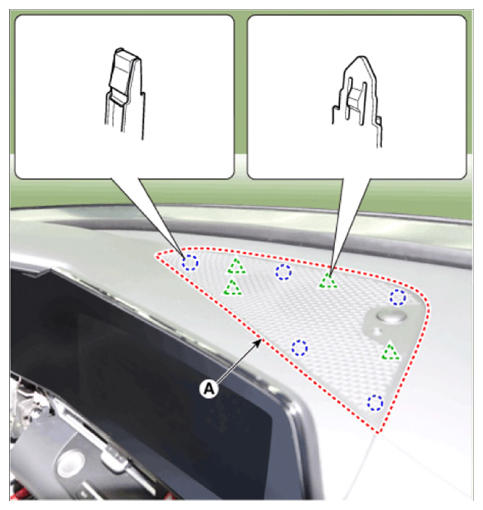

  8. Using a screwdriver or remover, remove the photo sensor cover (A).
    G14599589Courtesy of HYUNDAI MOTOR AMERICA

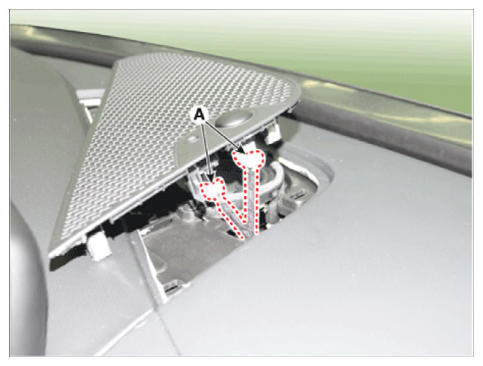

  9. Press the lock pin, separate the connectors (A).
    G14599590Courtesy of HYUNDAI MOTOR AMERICA

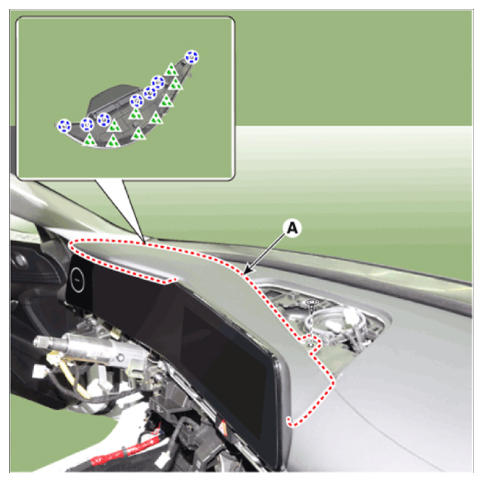

  10. Using a screwdriver or remover, remove the cluster fascia panel upper garnish (A).
    G14599591Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the crash pad garnish

    [LH]

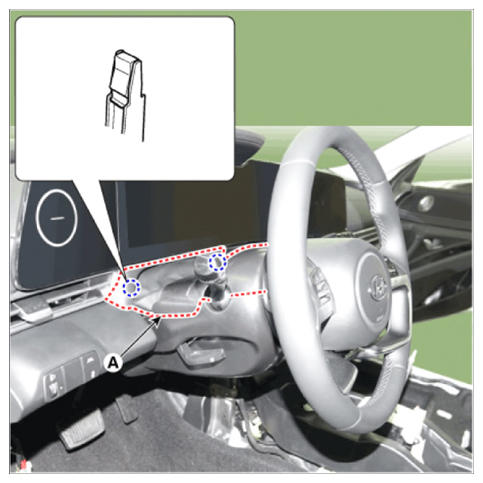

    1. Using screwdriver or remover, remove the steering column shroud upper panel (A).
      G14599592Courtesy of HYUNDAI MOTOR AMERICA

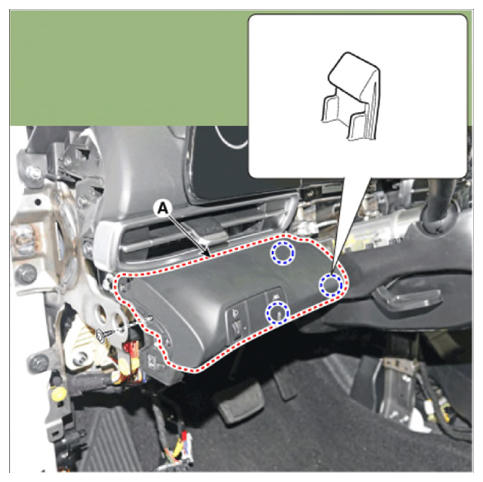

    2. Loosening the mounting screws, using a screwdriver or remover, remove the crash pad garnish (A).
      G14599593Courtesy of HYUNDAI MOTOR AMERICA

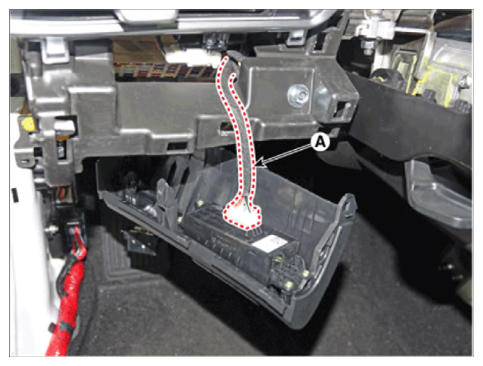

    3. Press the lock pin, separate the connector (A).
      G14599594Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

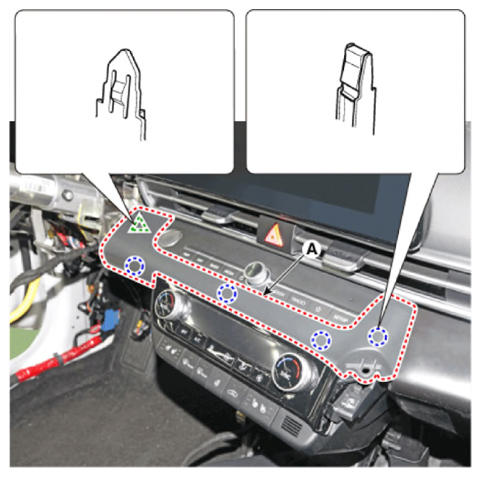

    1. Using a screwdriver or remover, remove the crash pad garnish [CTR] (A).
      G14599595Courtesy of HYUNDAI MOTOR AMERICA

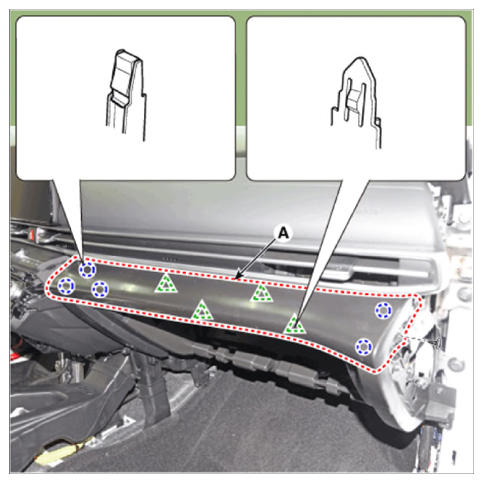

    2. Loosening the mounting screws, using a screwdriver or remover, remove the crash pad garnish (A).
      G14599596Courtesy of HYUNDAI MOTOR AMERICA

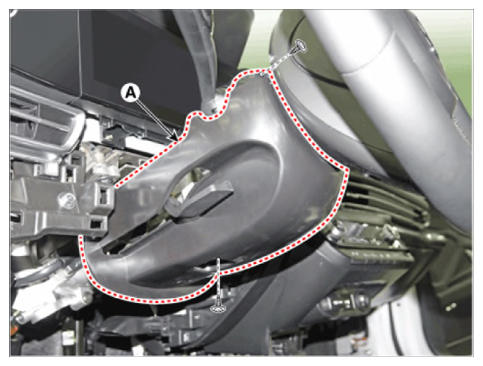

  12. Loosen the mounting screws by turning the steering wheel to the left and right, and remove the steering column shroud lower panel (A).
    G14599597Courtesy of HYUNDAI MOTOR AMERICA
  13. Remove the instrument cluster. (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

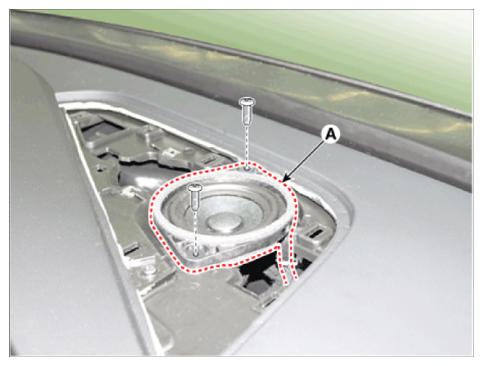

  14. Loosen the mounting screw, remove the center speaker (A).
    G14599598Courtesy of HYUNDAI MOTOR AMERICA

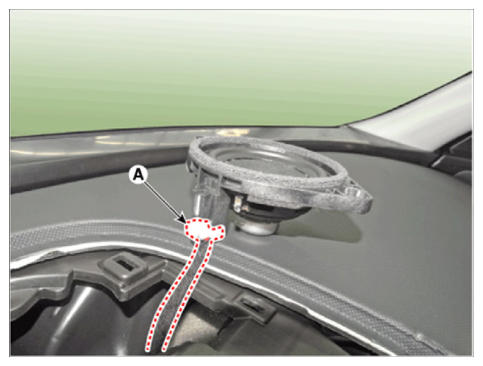

  15. Press the lock pin, separate the center speaker connector (A).
    G14599599Courtesy of HYUNDAI MOTOR AMERICA
  16. Remove the glove box housing cover. (Refer to Crash Pad - "GLOVE BOX HOUSING COVER ")

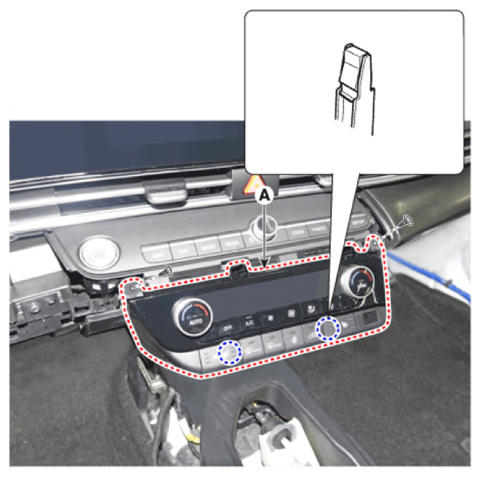

  17. Loosen the mounting screws, remove the A/C & heater controller unit (A).
    G14599600Courtesy of HYUNDAI MOTOR AMERICA

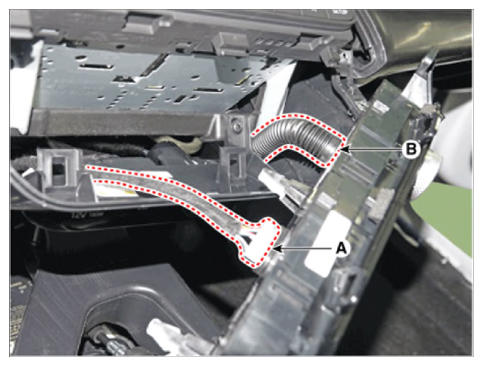

  18. Disconnect the A/C & heater controller connectors (A) and hose (B).
    G14599601Courtesy of HYUNDAI MOTOR AMERICA

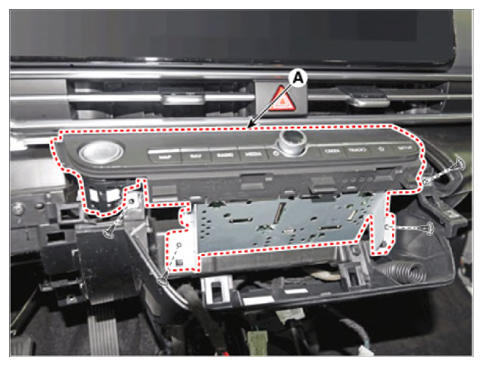

  19. Loosen the mounting screws, remove the AVN keyboard assembly (A).
    G14599602Courtesy of HYUNDAI MOTOR AMERICA

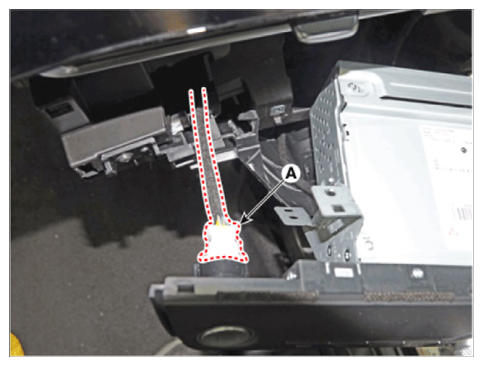

  20. Press the lock pin, separate the start button connector (A).
    G14599603Courtesy of HYUNDAI MOTOR AMERICA

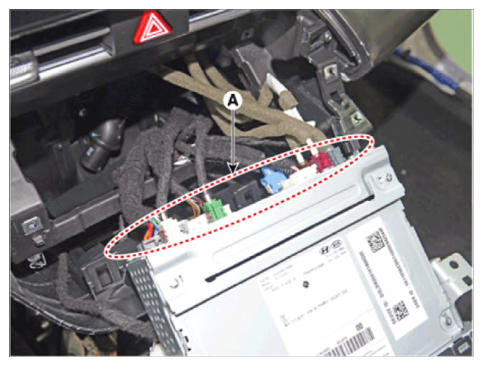

  21. Press the lock pin, separate the connectors (A).
    G14599604Courtesy of HYUNDAI MOTOR AMERICA

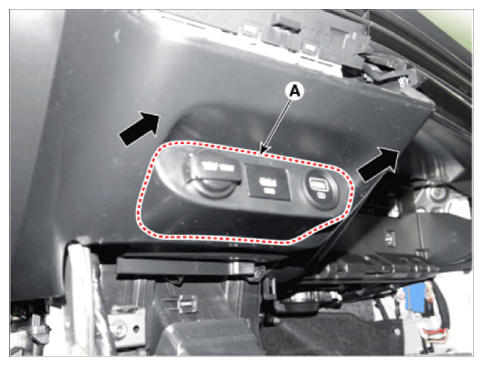

  22. Remove the USB port assembly (A) by pulling it in the direction of the arrow.
    G14599605Courtesy of HYUNDAI MOTOR AMERICA

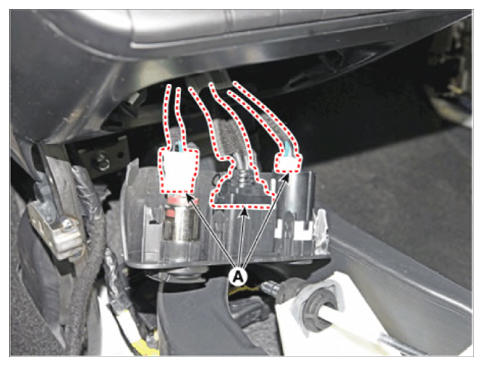

  23. Press the lock pin, separate the connectors (A).
    G14599606Courtesy of HYUNDAI MOTOR AMERICA

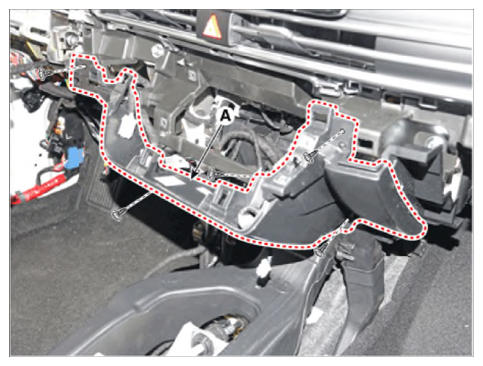

  24. Loosen the mounting screws, remove the crash pad center panel (A).
    G14599607Courtesy of HYUNDAI MOTOR AMERICA
  25. Remove the steering wheel. (Refer to Steering System - "STEERING WHEEL ")
  26. Remove the multifunction switch assembly. (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")
  27. Remove the crash pad air vent.

    [LH]

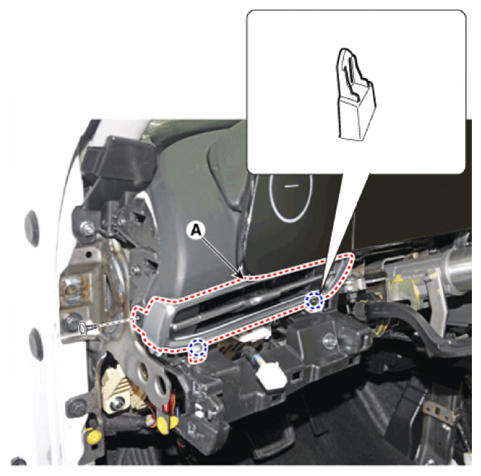

    1. Loosen the mounting screw, remove the crash pad air vent (A).
      G14599608Courtesy of HYUNDAI MOTOR AMERICA

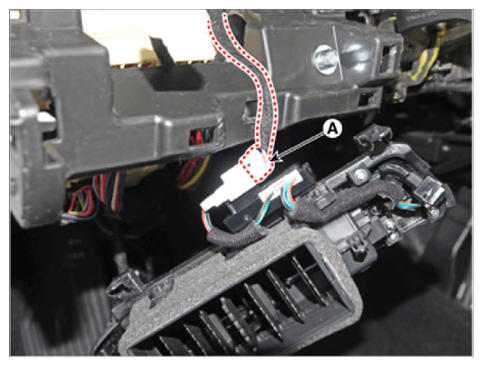

    2. Press the lock pin, separate the mood lamp connector (A).
      G14599609Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

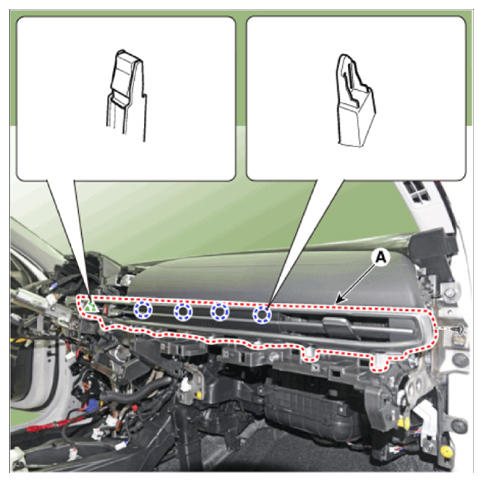

    1. Loosen the mounting screw, remove the crash pad air vent (A).
      G14599610Courtesy of HYUNDAI MOTOR AMERICA

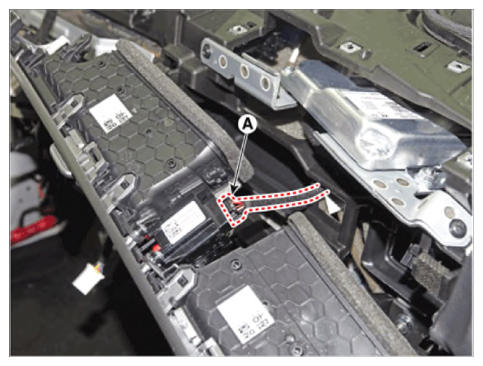

    2. Press the lock pin, separate the hazard switch connector (A).
      G14599611Courtesy of HYUNDAI MOTOR AMERICA

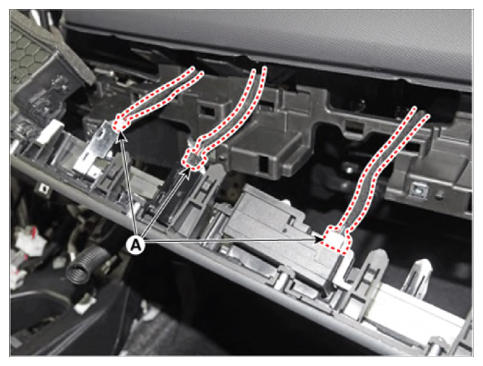

    3. Press the lock pin, separate the connectors (A).
      G14599612Courtesy of HYUNDAI MOTOR AMERICA

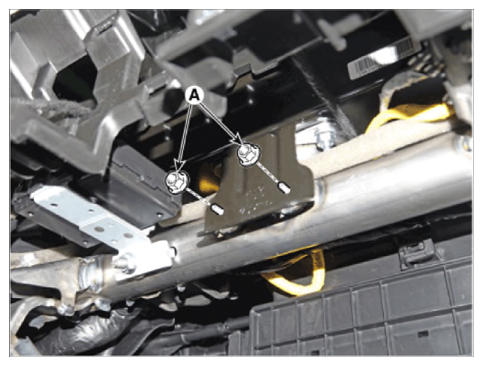

  28. Loosen the passenger's airbag (PAB) mounting nuts (A).

    Tightening torque:

    3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

    G14599613Courtesy of HYUNDAI MOTOR AMERICA

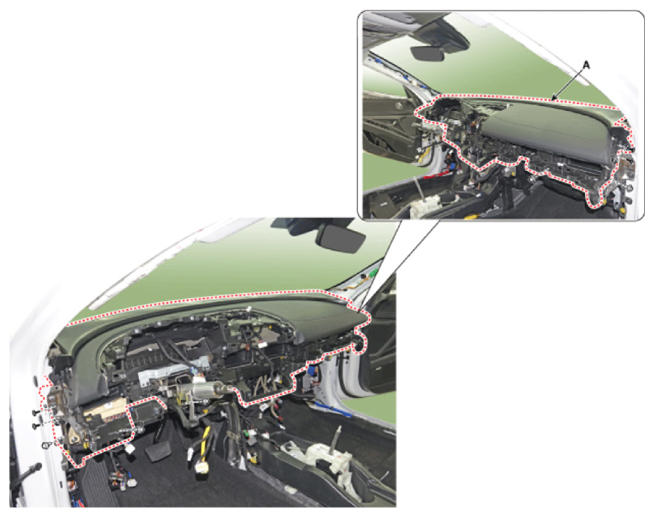

  29. Loosen the mounting bolts and nuts and remove the main crash pad assembly (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    G14599614Courtesy of HYUNDAI MOTOR AMERICA

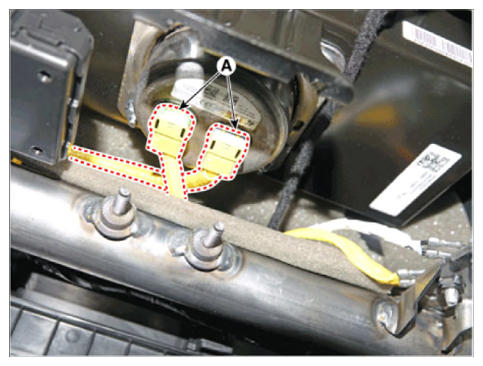

  30. Press the lock pin, separate the passenger's airbag (PAB) connectors (A).
    G14599615Courtesy of HYUNDAI MOTOR AMERICA
  31. To install, reverse the removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin - type retainers).
