Repair Procedures: Replacement

CAUTION:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Take care not to bend or scratch the trim and panels.

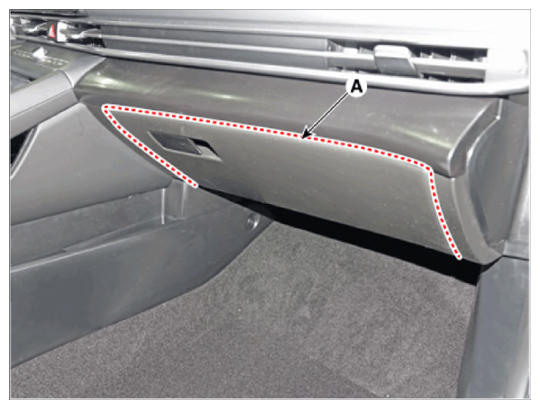

Open the glove box (A).

Courtesy of HYUNDAI MOTOR AMERICA

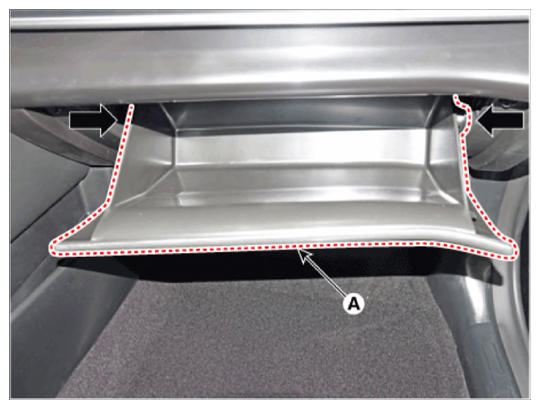

Press the side of the glove box and remove the glove box (A).

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
Information
- Replace any damaged clips (or pin - type retainers).
