Repair Procedures: Replacement
CAUTION:
- When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Remove the glove box. (Refer to Crash Pad - "GLOVE BOX ")
- Remove the crash pad side cover [RH]. (Refer to Crash Pad - "CRASH PAD SIDE COVER ")
- (Remove the crash pad garnish [RH]. (Refer to Crash Pad - "CRASH PAD GARNISH ")

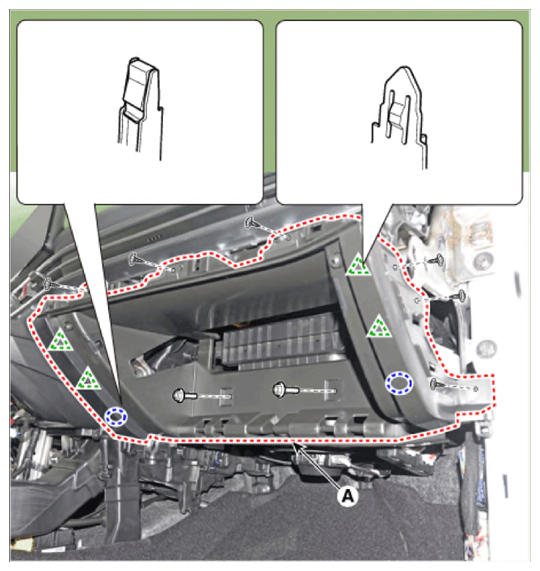

- Loosen the mounting screws and bolts, remove the glove box housing cover (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
