Repair Procedures: Replacement

CAUTION:

When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Put on gloves to prevent hand injuries.

NOTE:

Take care not to bend or scratch the trim and panels.

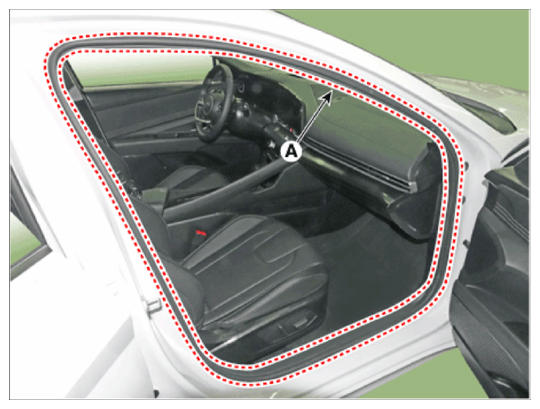

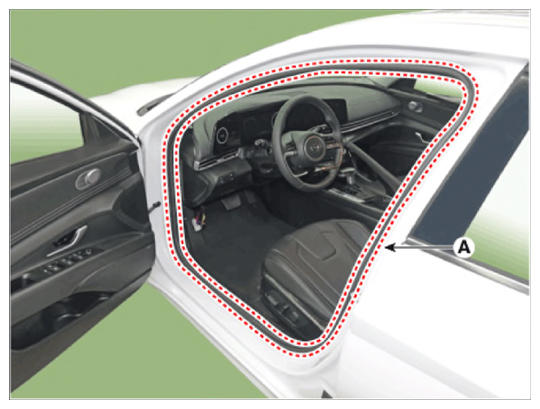

Detach the clips, then remove the front door body side weatherstrip (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

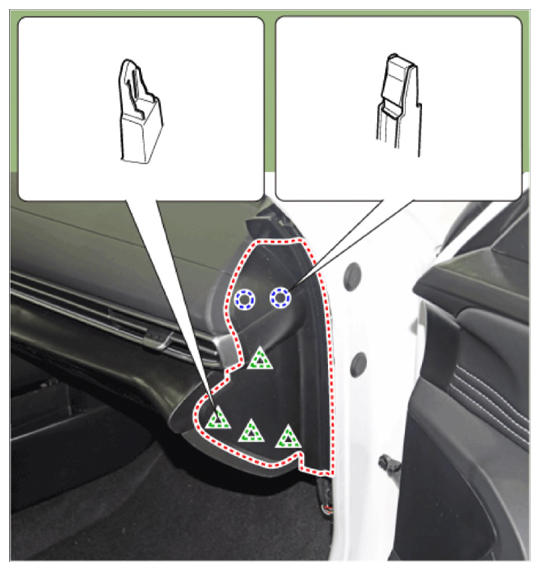

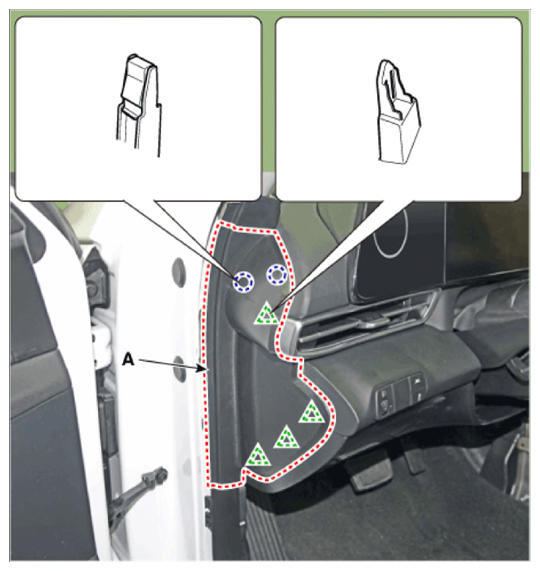

Using a screwdriver or remover, remove the crash pad side cover (A).
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

[RH]

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
