Repair Procedures: Replacement

CAUTION:
  • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
NOTE:
  • Take care not to bend or scratch the trim and panels.

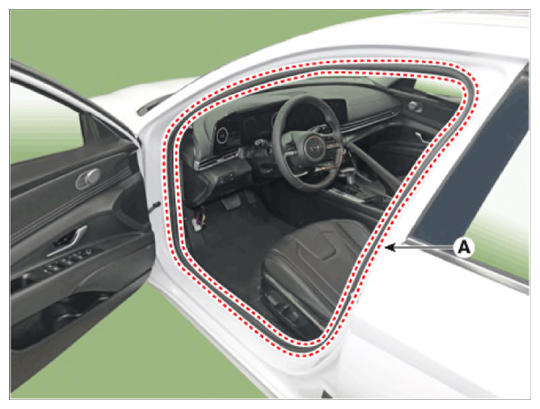

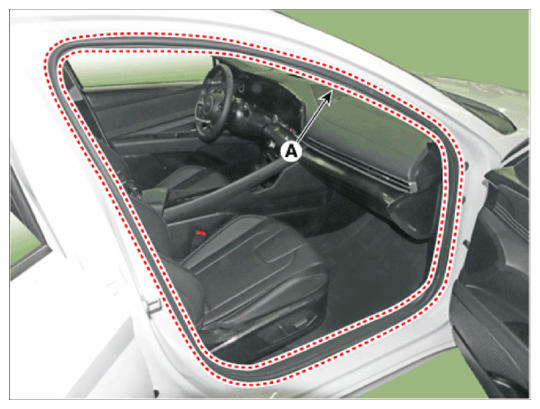

  1. Detach the clips, then remove the front door body side weatherstrip (A).

    [LH]

    G14599509Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    G14599510Courtesy of HYUNDAI MOTOR AMERICA

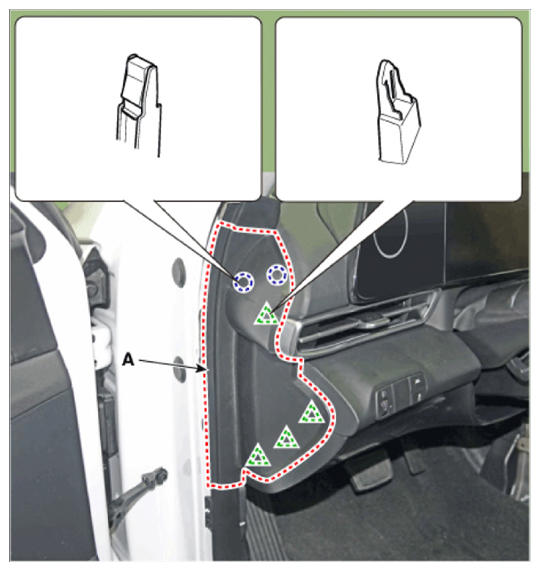

  2. Using a screwdriver or remover, remove the crash pad side cover (A).

    [LH]

    G14599511Courtesy of HYUNDAI MOTOR AMERICA

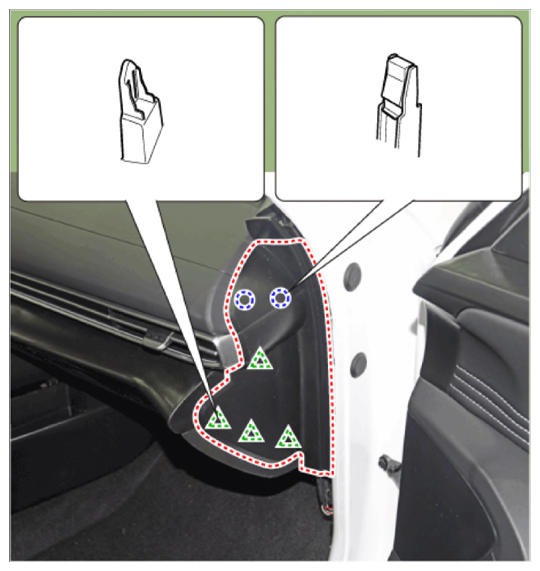

    [RH]

    G14599512Courtesy of HYUNDAI MOTOR AMERICA
  3. Remove the crash pad garnish

    [LH]

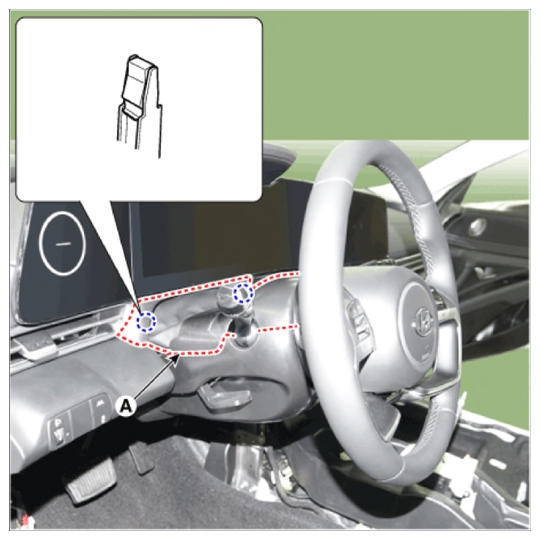

    1. Using screwdriver or remover, remove the steering column shroud upper panel (A).
      G14599513Courtesy of HYUNDAI MOTOR AMERICA

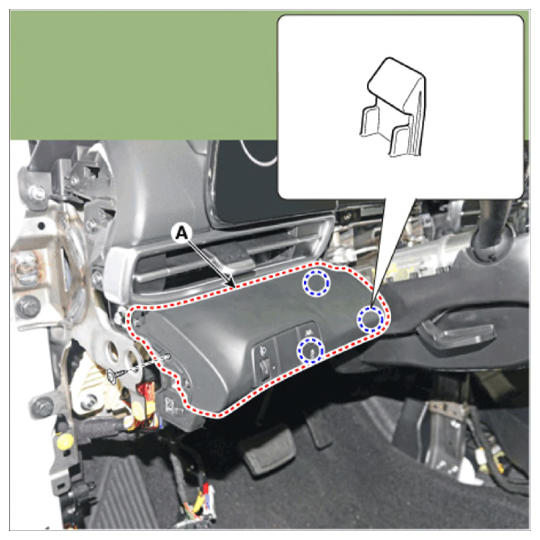

    2. Loosening the mounting screws, using a screwdriver or remover, remove the crash pad garnish (A).
      G14599514Courtesy of HYUNDAI MOTOR AMERICA

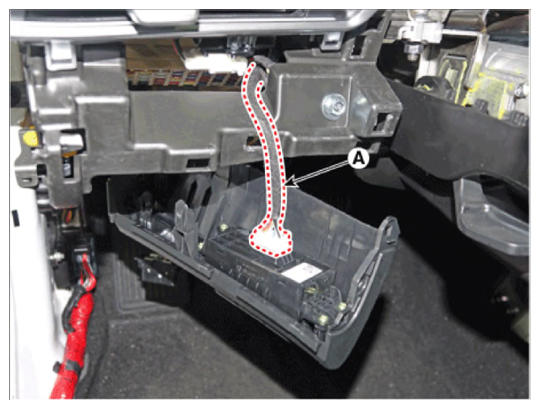

    3. Press the lock pin, separate the connector (A).
      G14599515Courtesy of HYUNDAI MOTOR AMERICA

    [RH]

    1. Using screwdriver or remover, remove the steering column shroud upper panel (A).
      G14599516Courtesy of HYUNDAI MOTOR AMERICA

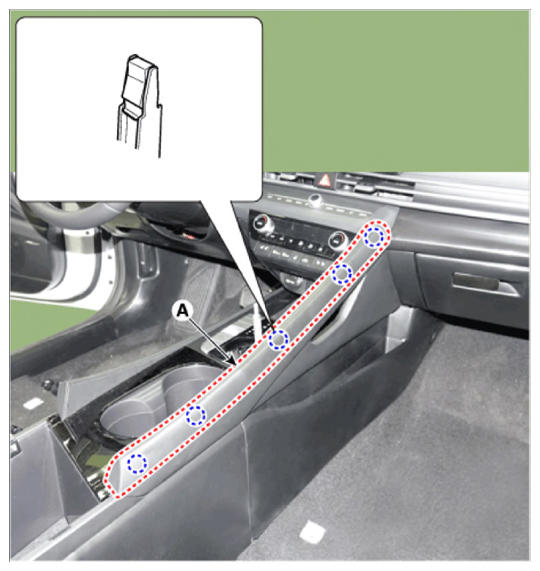

    2. Using screwdriver or remover, remove the floor console side garnish (A).
      G14599517Courtesy of HYUNDAI MOTOR AMERICA

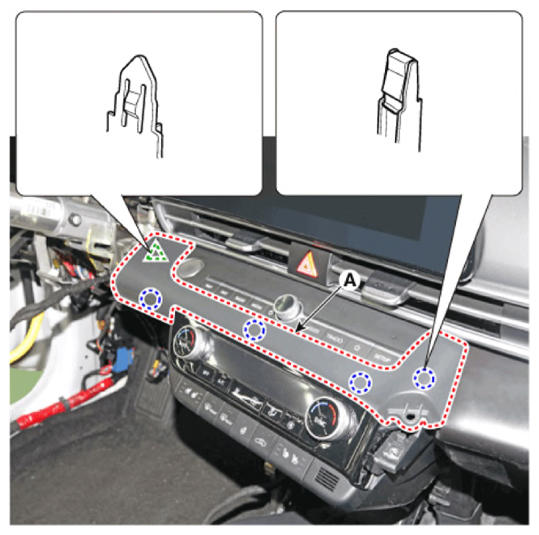

    3. Using a screwdriver or remover, remove the crash pad garnish [CTR] (A).
      G14599518Courtesy of HYUNDAI MOTOR AMERICA

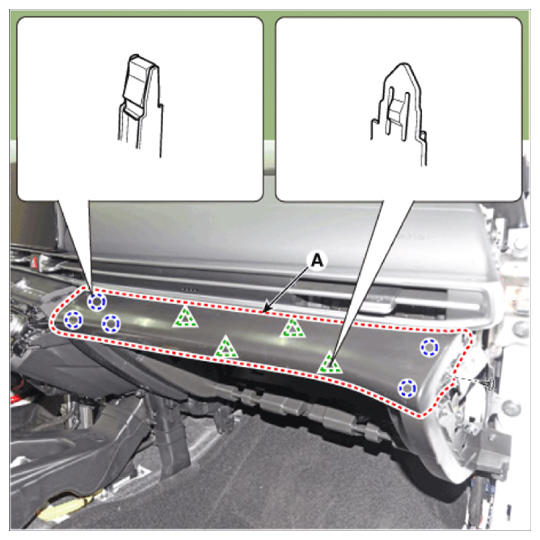

    4. Loosening the mounting screws, using a screwdriver or remover, remove the crash pad garnish (A).
      G14599519Courtesy of HYUNDAI MOTOR AMERICA

    [CTR]

    1. Using screwdriver or remover, remove the steering column shroud upper panel (A).
      G14599520Courtesy of HYUNDAI MOTOR AMERICA
    2. Using screwdriver or remover, remove the floor console side garnish (A).
      G14599521Courtesy of HYUNDAI MOTOR AMERICA
    3. Loosening the mounting screws, using a screwdriver or remover, remove the crash pad garnish (A).
      G14599522Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.

    Information

    • Make sure the connector is connected properly.
    • Replace any damaged clips (or pin - type retainers).
