Repair Procedures: Replacement: [RH]
CAUTION:
- When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.
- Remove the instrument cluster. (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")
- Remove the crash pad lower panel. (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

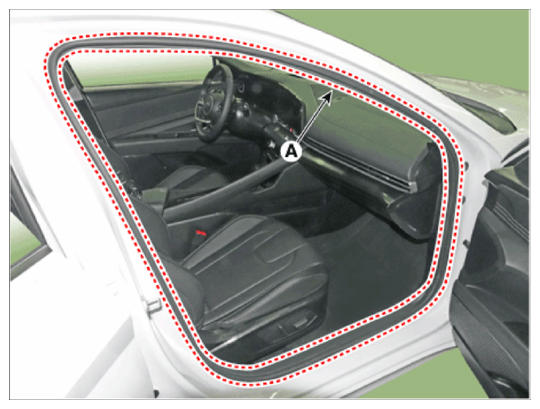

- Detach the clips, then remove the front door body side weatherstrip (A).

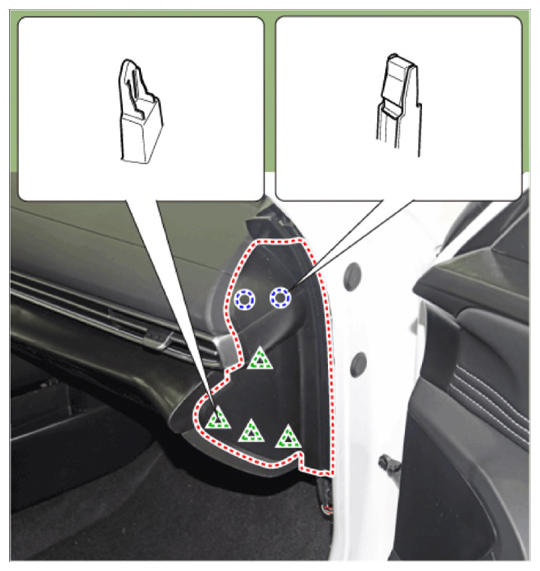

- Using a screwdriver or remover, remove the crash pad side cover (A).

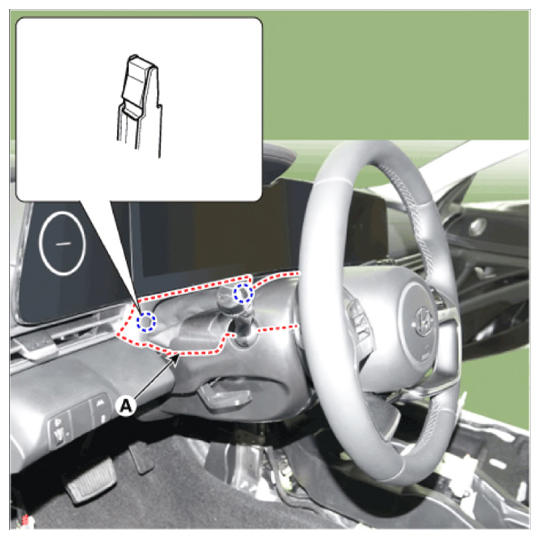

- Using a screwdriver or remover, remove the steering column shroud upper panel (A).

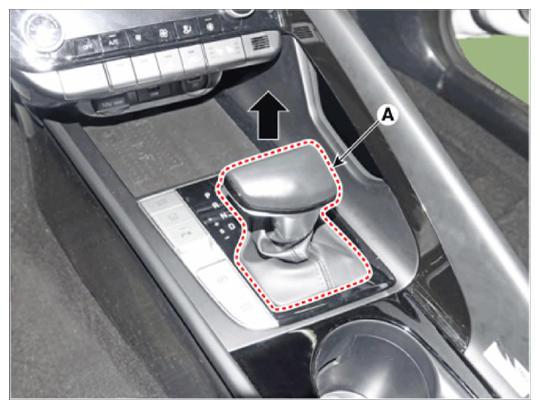

- To remove the gear knob & gear boots (A) pull both of it up.

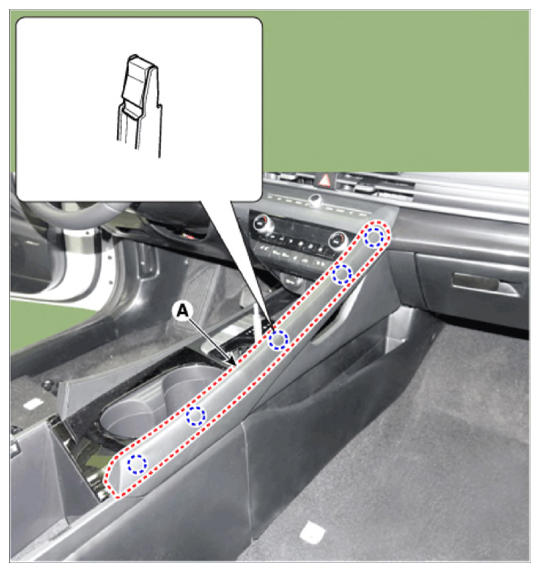

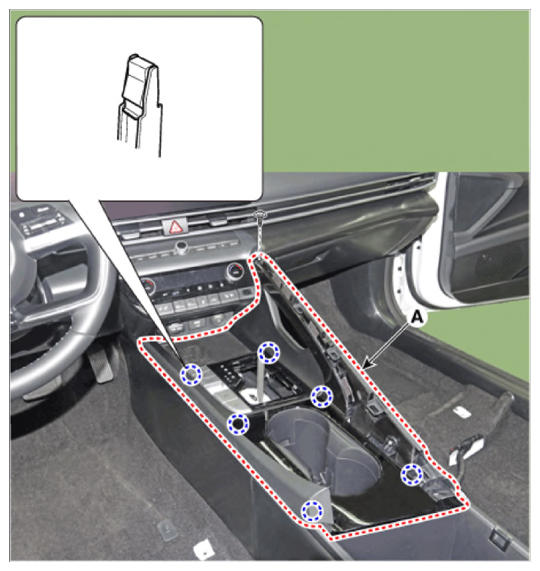

- Using a screwdriver or remover, remove the floor console side garnish (A).
- After loosening the mounting screw and then using a screwdriver or remover, remove the console upper cover (A).

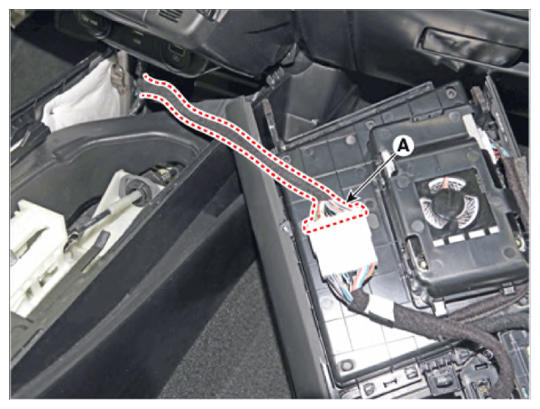

- Press the lock pin separate the console upper cover connector (A).

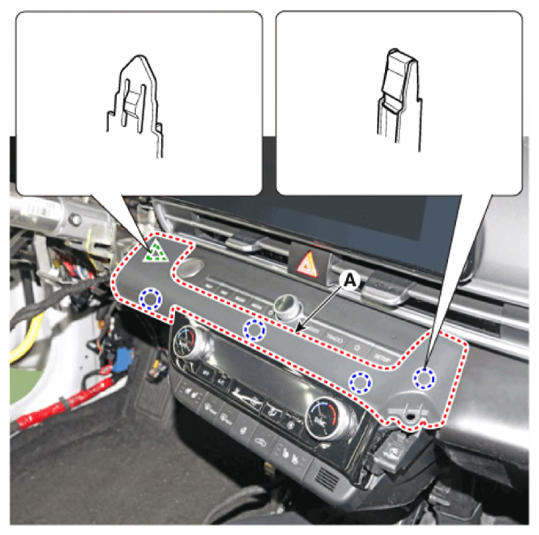

- Using a screwdriver or remover, remove the crash pad garnish [CTR] (A).

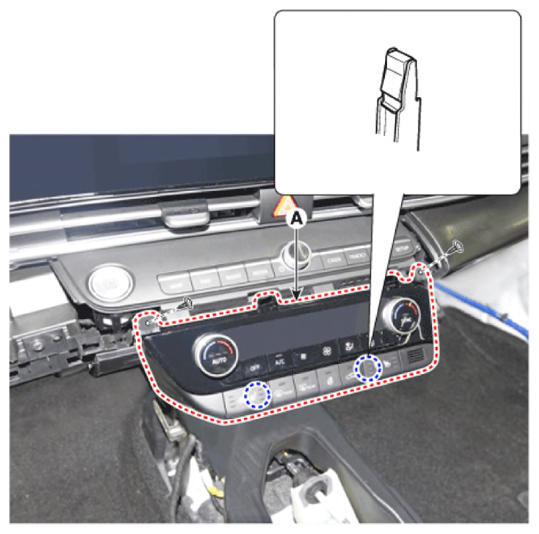

- Loosen the mounting screws, remove the A/C & heater controller unit (A).

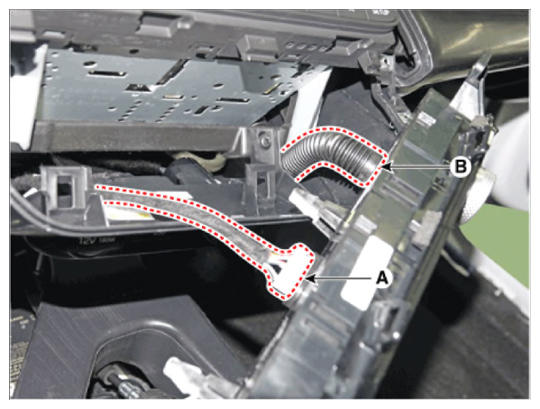

- Disconnect the A/C & heater controller connectors (A) and hose (B).

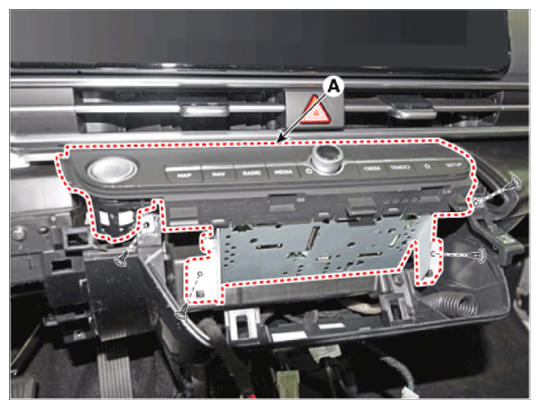

- Loosen the mounting screws, remove the AVN keyboard assembly (A).
- Press the lock pin, separate the start button connector (A).

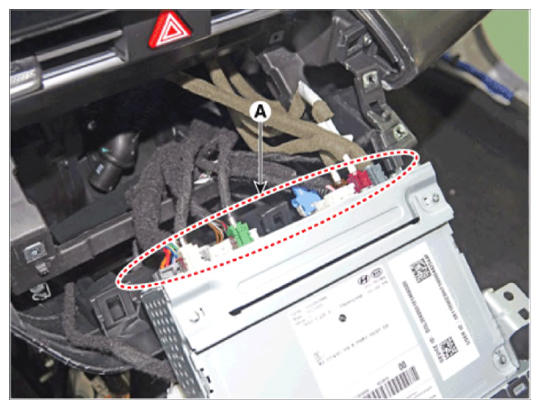

- Press the lock pin, separate the connectors (A).

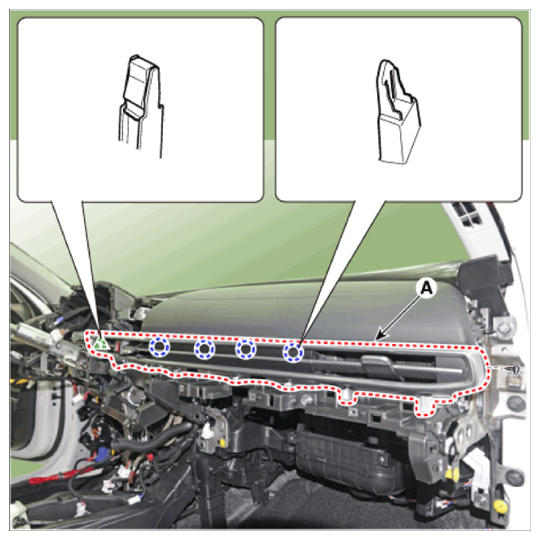

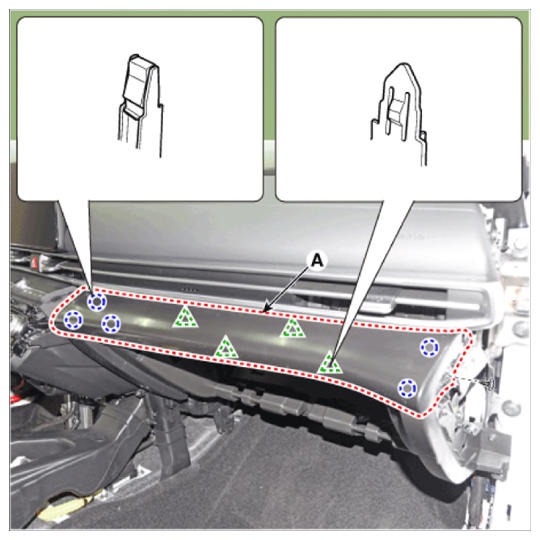

- Loosening the mounting screws, using a screwdriver or remover, remove the crash pad garnish (A).
- Loosen the mounting screw, remove the crash pad air vent (A).

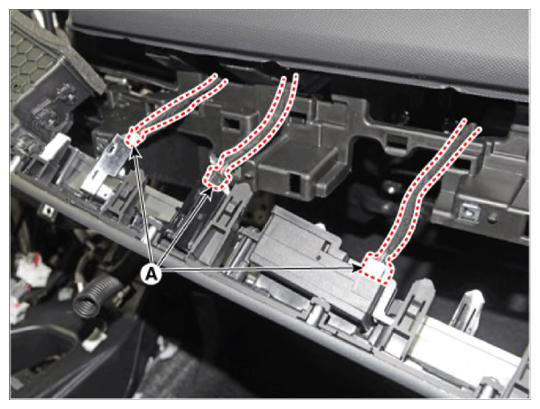

- Press the lock pin, separate the hazard switch connector (A).

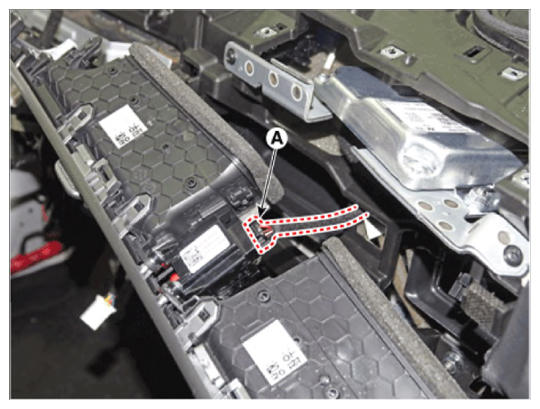

- Press the lock pin, separate the connectors (A).
- To install, reverse the removal procedure.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin - type retainers).
