Repair Procedures: Replacement: [LH]
CAUTION:
- When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.

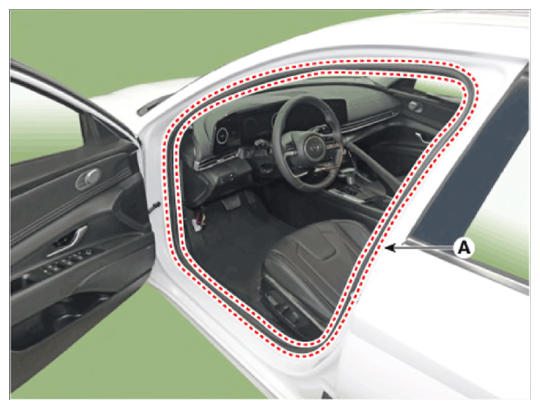

- Detach the clips, then remove the front door body side weatherstrip (A).

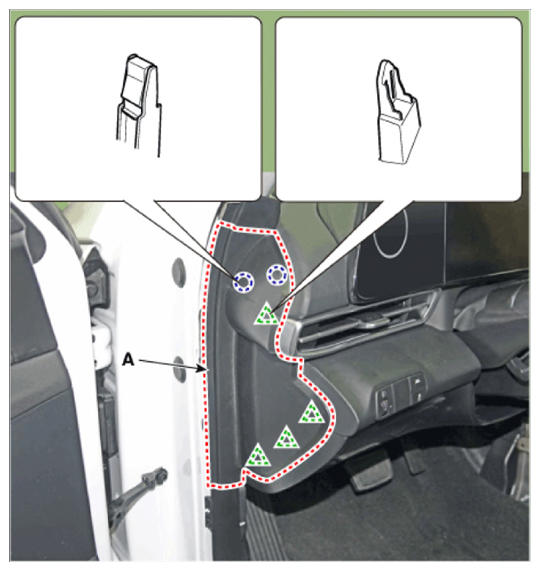

- Using a screwdriver or remover, remove the crash pad side cover (A).
- Remove the crash pad garnish [LH]. (Refer to Crash Pad - "CRASH PAD GARNISH ")

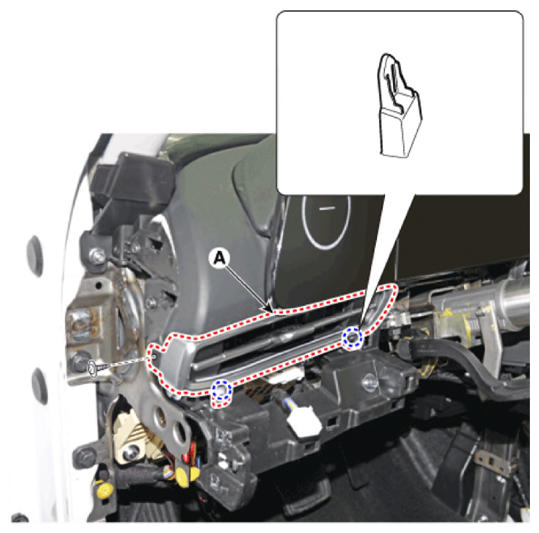

- Loosen the mounting screw, remove the crash pad air vent (A).

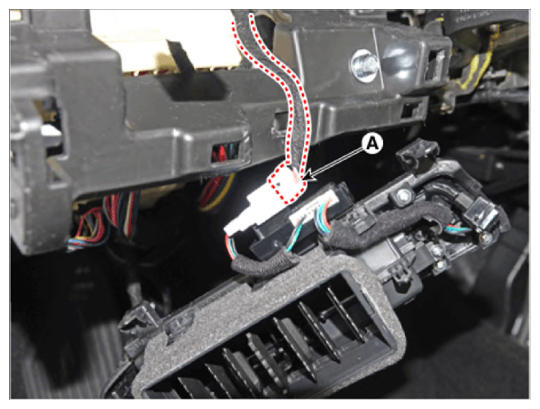

- Press the lock pin, separate the mood lamp connector (A).
- To install, reverse the removal procedure.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin - type retainers).
