Repair Procedures: Replacement

CAUTION:
  • When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • Put on gloves to prevent hand injuries.
NOTE:
  • Take care not to bend or scratch the trim and panels.

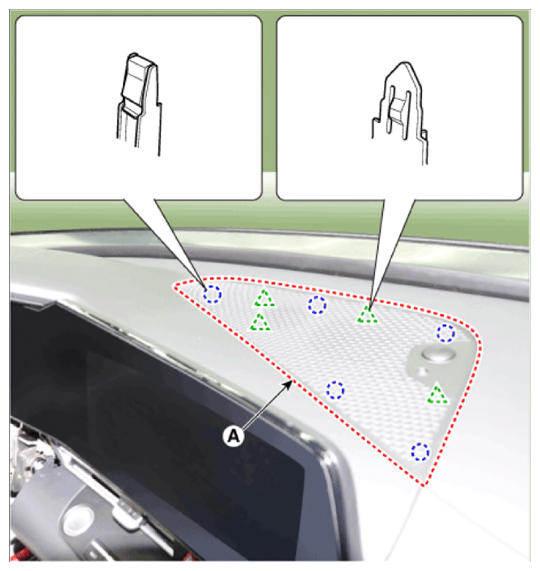

  1. Using a screwdriver or remover, remove the photo sensor cover (A).
    G14599495Courtesy of HYUNDAI MOTOR AMERICA

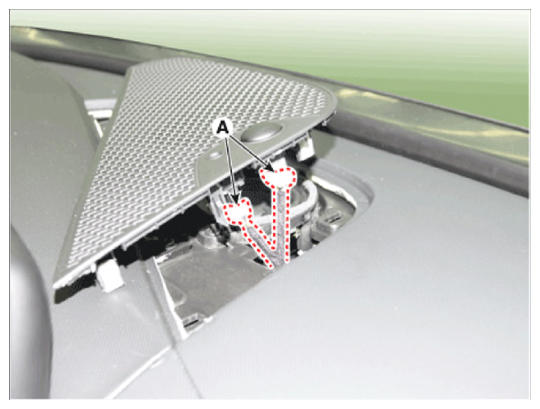

  2. Press the lock pin, separate the connectors (A).
    G14599496Courtesy of HYUNDAI MOTOR AMERICA

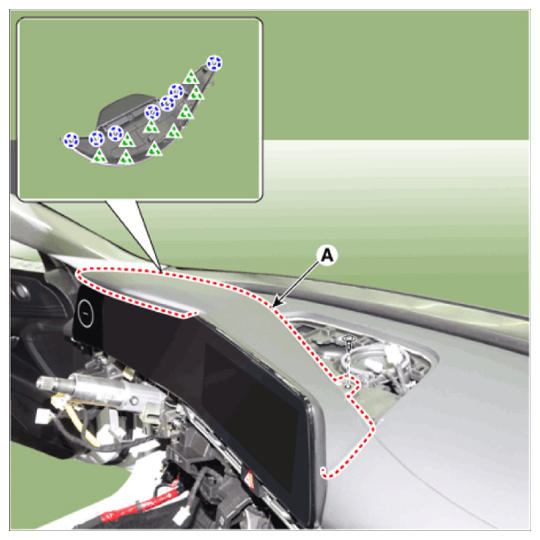

  3. Using a screwdriver or remover, remove the cluster fascia panel upper garnish (A).
    G14599497Courtesy of HYUNDAI MOTOR AMERICA
  4. Loosen the mounting screw, remove the cluster fascia side panel (A).

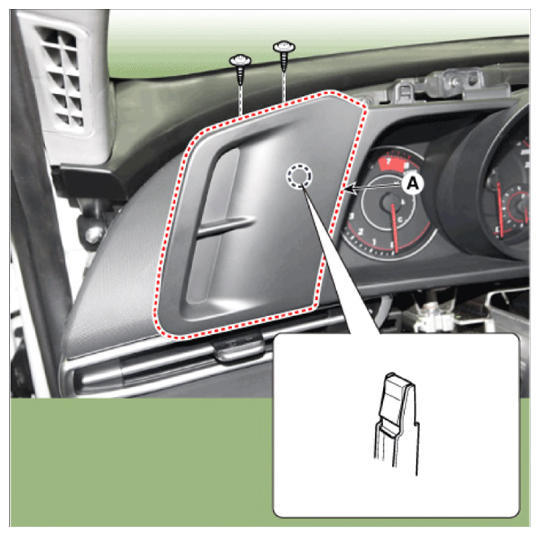

    [4.2" TFT LCD]

    G14599498Courtesy of HYUNDAI MOTOR AMERICA

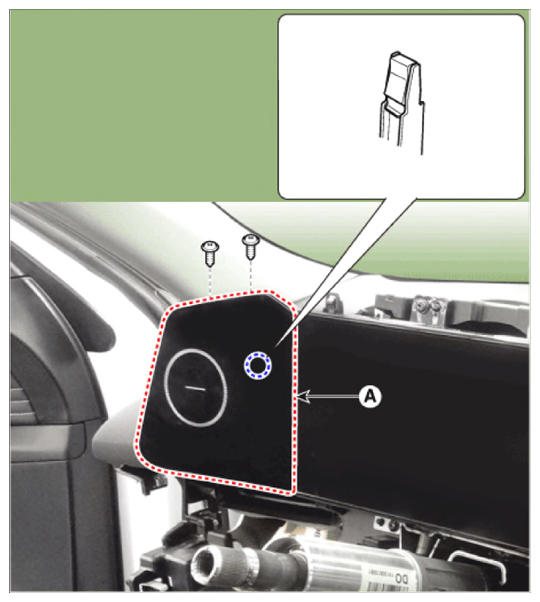

    [10.25" TFT cluster]

    G14599499Courtesy of HYUNDAI MOTOR AMERICA

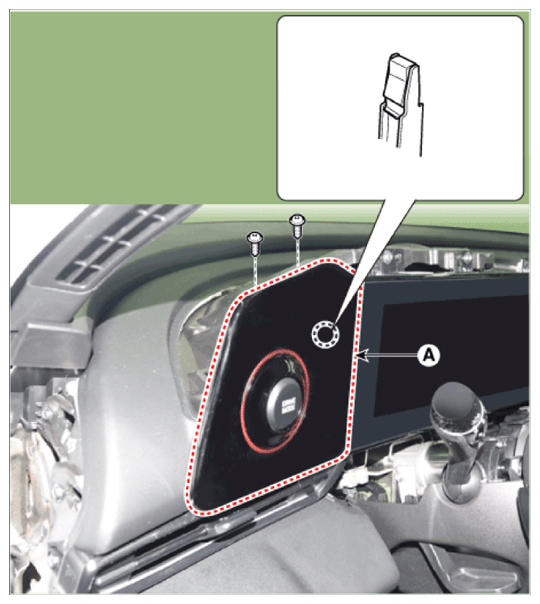

    [N Line]

    G14599500Courtesy of HYUNDAI MOTOR AMERICA

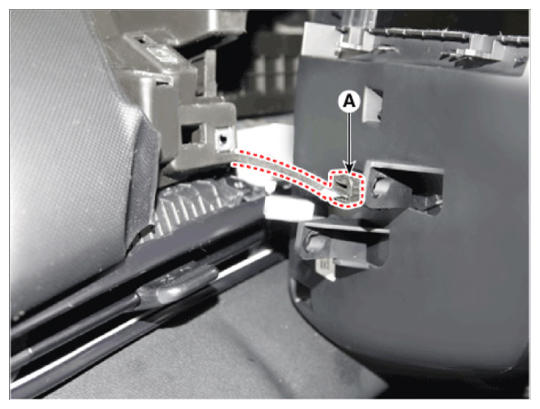

  5. Press the lock pin, separate the cluster fascia side panel connector (A). [N Line]
    G14599501Courtesy of HYUNDAI MOTOR AMERICA
  6. To install, reverse the removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips (or pin - type retainers).
