Repair Procedures: Replacement
CAUTION:
- When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- Put on gloves to prevent hand injuries.
NOTE:
- Take care not to bend or scratch the trim and panels.

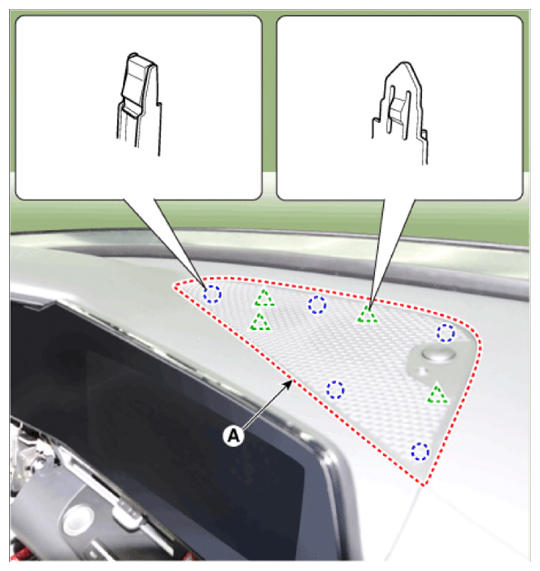

- Using a screwdriver or remover, remove the photo sensor cover (A).

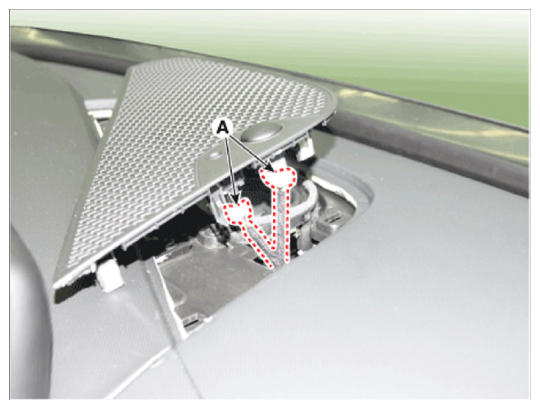

- Press the lock pin, separate the connectors (A).
- Using a screwdriver or remover, remove the cluster fascia panel upper garnish (A).
- Loosen the mounting screws and remove the center fascia side panel (A).
- Loosen the mounting screws and remove the center fascia panel (A).
- To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin - type retainers).
