Inspect the stop lamp circuit

Connect probe to each terminal wire and confirm oscilloscope waveform.

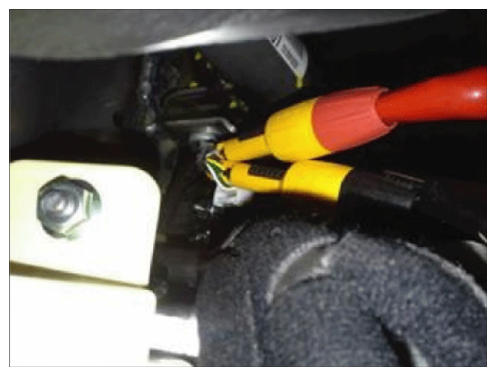

[Stop Lamp Switch Input/Output]

G14077922Courtesy of HYUNDAI MOTOR AMERICA

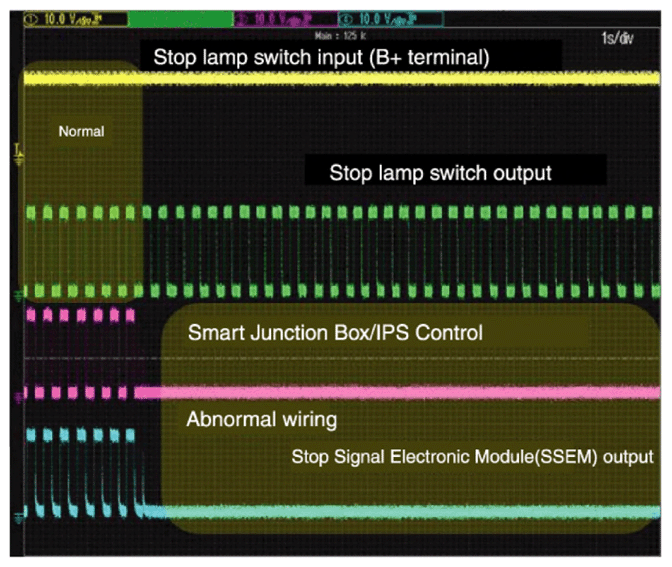

[Oscilloscope Waveform Screen]

G14077923Courtesy of HYUNDAI MOTOR AMERICA
