Brake Tube (Engine Room)
- Disconnect the negative (-) battery cable.

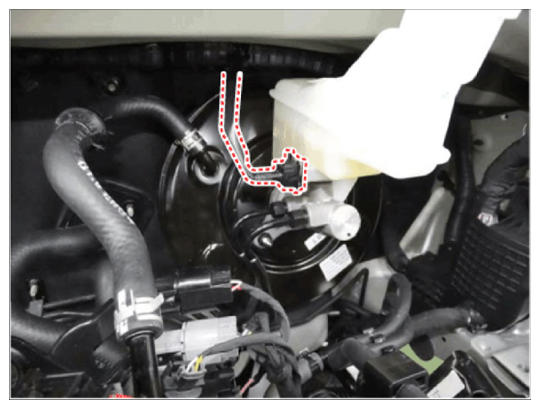

- Disconnect the brake fluid level switch connector.
- Remove the brake fluid from the master cylinder reservoir with a syringe.NOTE:
- Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
- Remove the brake tube from the ESP (ABS), master cylinder and brake tube connector.
Tightening torque
ABS: 13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)
ESP: 18.6 - 22.6 N.m (1.9 - 2.3 kgf.m. 13.7 - 16.6 lb-ft)
Brake tube connector: 13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)
Master cylinder: 13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)
NOTE:- When replacing, be careful not to damage the brake tube.
