Home >> Hyundai >> 2021 >> Accent SEL >> Repair and Diagnosis (Single Page) >> Brakes >> Anti-Lock Brakes >> Abs/ESC System Diagnosis (1 Of 2) >> DTC C1211-02: Wheel Speed Sensor Rear-RH Invalid/No Signal >> Specification >> Signal Waveform & Data

Signal Waveform & Data

G14079648Courtesy of HYUNDAI MOTOR AMERICA

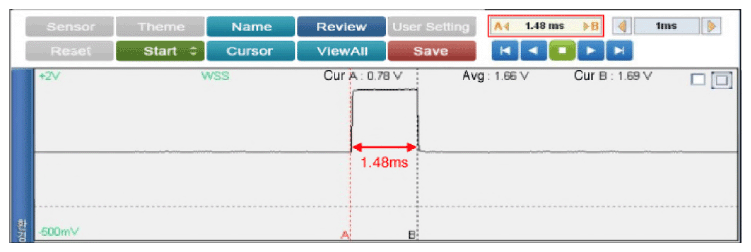

G14079649Courtesy of HYUNDAI MOTOR AMERICA

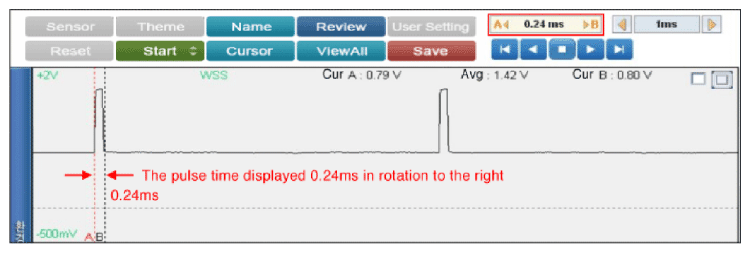

G14079650Courtesy of HYUNDAI MOTOR AMERICA
G14079651Courtesy of HYUNDAI MOTOR AMERICA

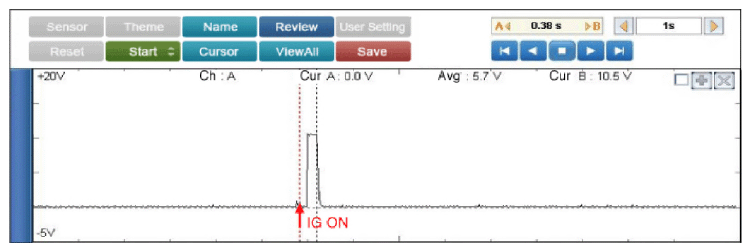

G14079652Courtesy of HYUNDAI MOTOR AMERICA
G14079653Courtesy of HYUNDAI MOTOR AMERICA

* Smart type wheel speed sensor is installed at rear axle of the SPAS applied vehicle.
