Glass Adjustment

Information

• Check the glass run channel for damage or deterioration, and replace them if necessary.

1. Remove the rear door trim.

   (Refer to "REAR DOOR TRIM ")

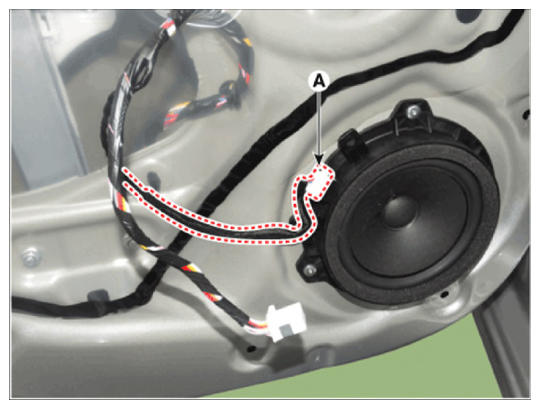

2. Disconnect the rear door speaker connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

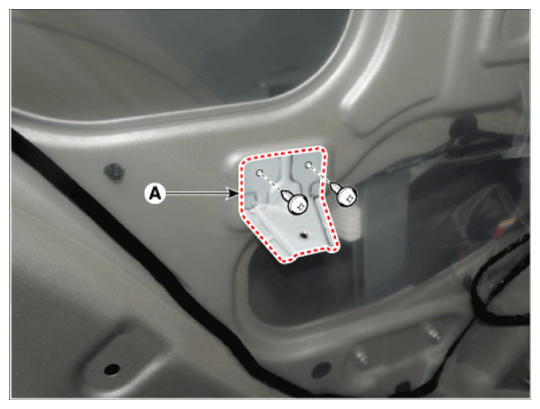

3. After loosening the mounting screws, remove the rear door trim seal mounting bracket (A).

   Courtesy of HYUNDAI MOTOR AMERICA

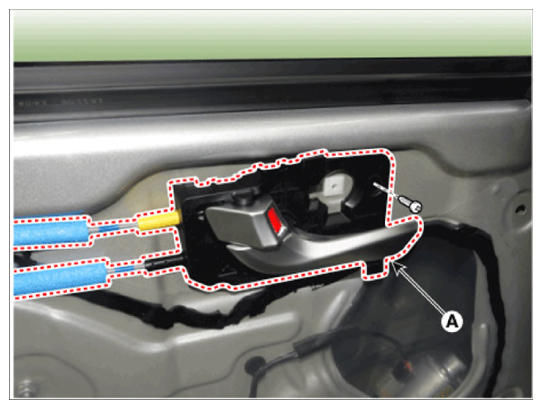

4. After loosening the mounting screws, remove the rear door inside handle (A).

   Courtesy of HYUNDAI MOTOR AMERICA

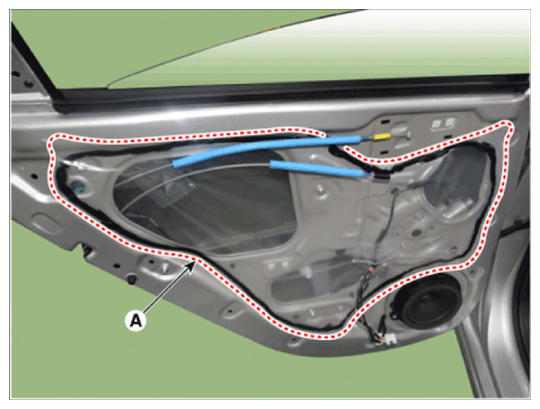

5. Remove the rear door trim seal (A).

   Information

   • Replace any damaged door trim seal.

   Courtesy of HYUNDAI MOTOR AMERICA

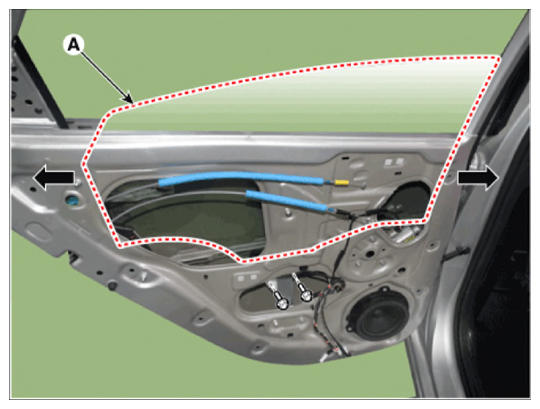

6. After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.

   Courtesy of HYUNDAI MOTOR AMERICA

7. Check the glass for normal operation.
