Door Position Adjustment
Information

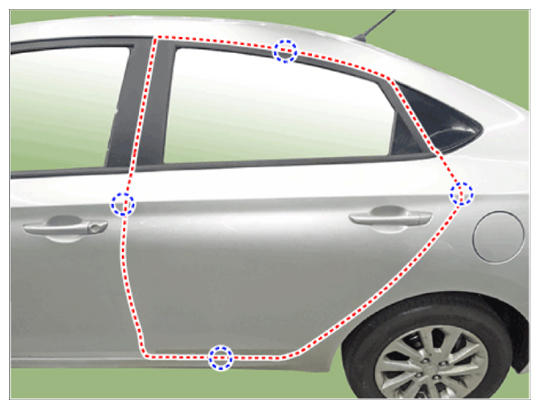

- After installing the rear door, check that the body fits flush with/parallel to all the edges of front door. Check that the door and body edges are parallel. Before adjusting, replace the mounting bolts.
- Check that the door and body edges are parallel.
- Place the vehicle on a firm, level surface when adjusting the doors.
- Adjust the hinges (A):
- Loosen the door mounting bolts slightly, and move the door in or out until it aligns flush with the body.
- Loosen the hinge mounting bolts slightly, and move the door backward or forward, up or down as necessary to make the gaps equal.
- Place a shop towel on the jack to prevent damage to the door when adjusting the door.
Tightening torque:
(B): 22.6 - 27.5 N.m (2.3 - 2.8 kgf.m, 16.2 - 19.9 lb-ft)
(C): 23.6 - 31.9 N.m (2.4 - 3.2 kgf.m, 17.4 - 23.5 lb-ft)
- Grease the pivot portions of the hinges indicated by the arrows.
- Check for water leaks.
