Home >> Hyundai >> 2021 >> Accent SEL >> Repair and Diagnosis (Single Page) >> Body & Frame >> Exterior Body Panels >> Rear Door Assembly >> Rear Door Belt Outside Weatherstrip >> Repair Procedures >> Replacement

Repair Procedures: Replacement

  1. Pull down the rear door window glass to the lowest level by pressing the power window glass switch.

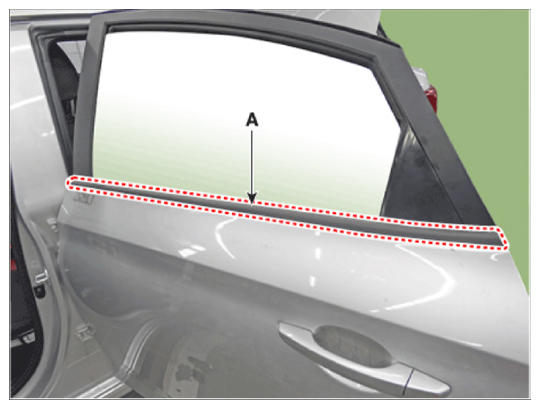

  2. After loosening the mounting screws, remove the rear door belt outside weatherstrip (A).
    G14078242Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.

    Information

    • Replace any damaged clips.
