Repair Procedures: Replacement

  1. Remove the rear door trim.

    (Refer to "REAR DOOR TRIM ")

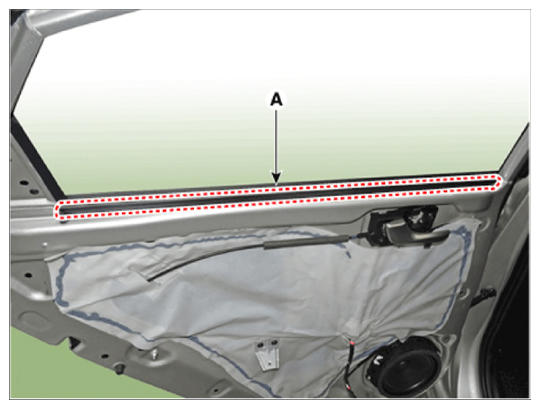

  2. Remove the rear door belt inside weatherstrip (A).
    G14078243Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse the removal procedure.

    Information

    • When installing, install it by first contacting the inside part (basis point of assembly) of arrow to door frame.
    • Replace any damaged clips.
