Repair Procedures: Replacement
CAUTION:
Put on gloves to protect your hands.
Information
- Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the seat assembly.
(Refer to "REAR SEAT ASSEMBLY ")

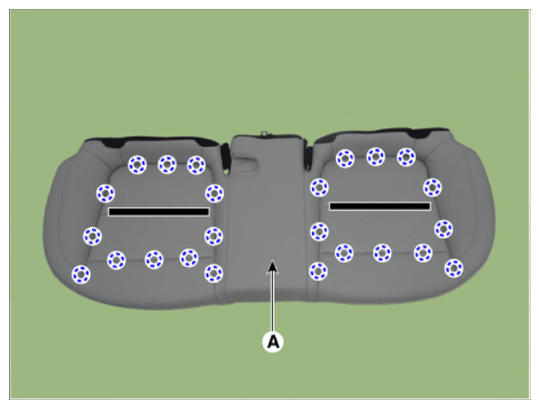

- Remove the rear seat cushion cover (A) after removing the hog-ring clips on the rear of seat cushion cover.
- Install in the reverse order of removal.
Information
- Make sure that the connectors are plugged in properly.
- Replace any damaged clips.

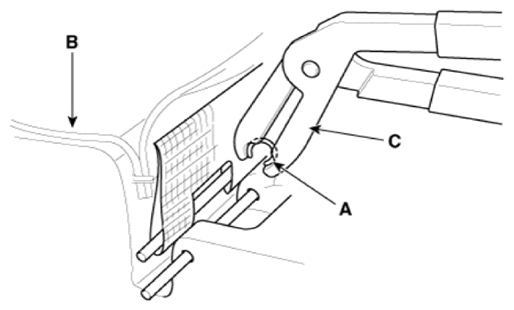

- To prevent wrinkles, make sure that the material is stretched evenly over the cover (B) before securing the hog-ring clips (A).
- Replace the hog-ring clips with new ones using special tool (C) (09880-4F000).
