Repair Procedures: Removal
CAUTION:
Head lamps become very hot during use; do not touch them or any attaching hardware immediately after they have been turned off.
NOTE:
The headlamp bulb should not be removed from the headlamp assembly until just before a new bulb is installed.
Removing bulb for an extended period of time may affect headlamp bulb performance.
Contaminants may enter the headlamp assembly where they can settle on the lens and reflector.
Never turn on the head lamps with the bulb removed from the headlamp assembly.
Removing bulb for an extended period of time may affect headlamp bulb performance.
Contaminants may enter the headlamp assembly where they can settle on the lens and reflector.
Never turn on the head lamps with the bulb removed from the headlamp assembly.
- Disconnect the negative (-) battery terminal.
- Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")

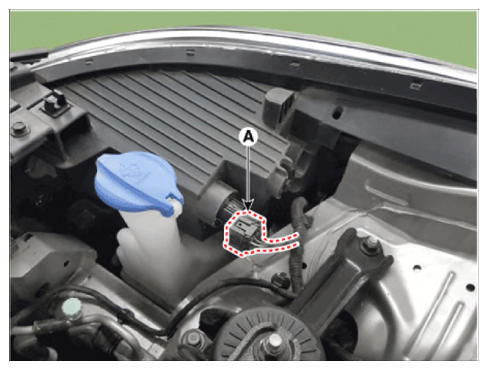

- Disconnect the lamp connector (A) from the head lamp assembly.

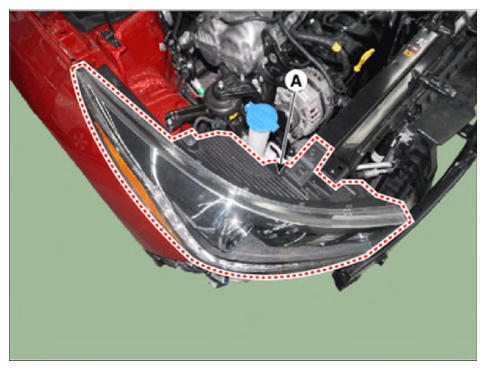

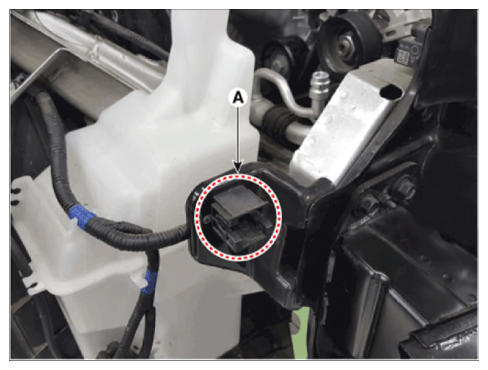

- Remove the head lamp assembly (A) after loosening the mounting bolts.NOTE: Take care that retaining clip (A) is not to be damaged.
