Repair Procedures: Replacement

Information

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the floor console.

   (Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")

2. Remove the cowl side trim.

   (Refer to Interior Trim - "COWL SIDE TRIM ")

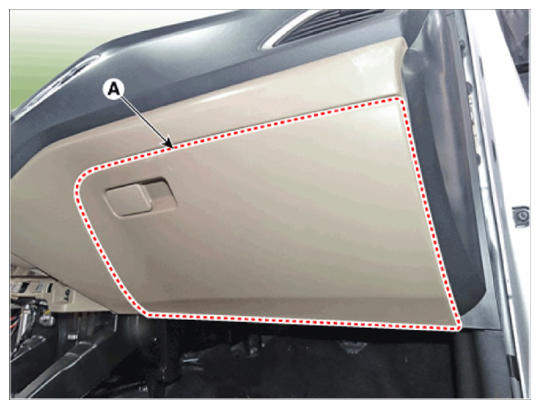

3. Open the glove box (A) in the direction of the arrow.

   Courtesy of HYUNDAI MOTOR AMERICA

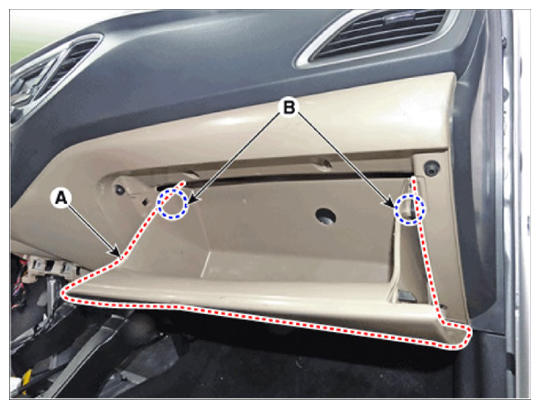

4. Press both sides of the stoppers (B) down the glove box (A).

   Courtesy of HYUNDAI MOTOR AMERICA

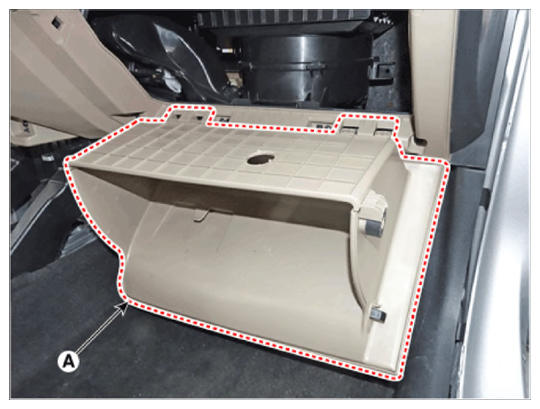

5. Remove the glove box (A).

   Courtesy of HYUNDAI MOTOR AMERICA

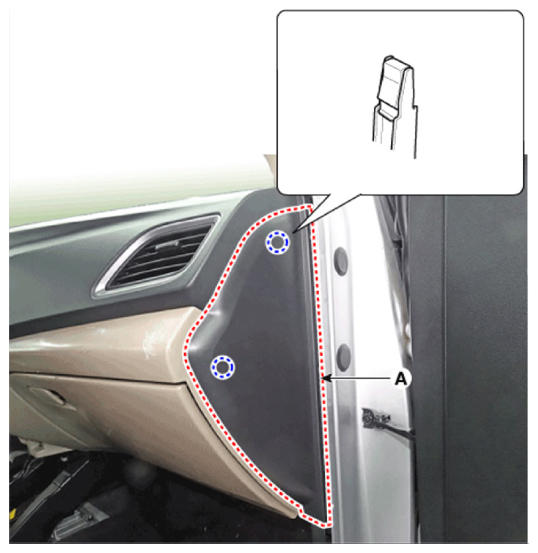

6. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

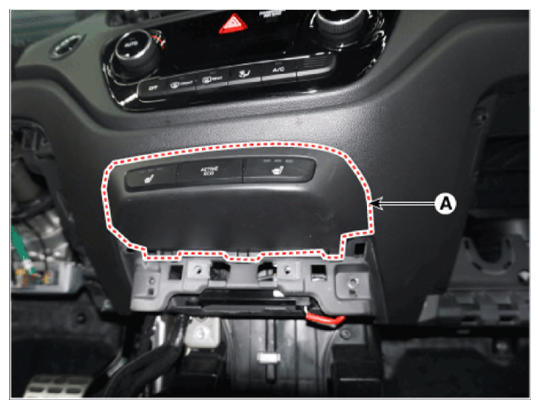

7. Using a screwdriver or remover, remove the crash pad lower switch complete (A).

   Courtesy of HYUNDAI MOTOR AMERICA

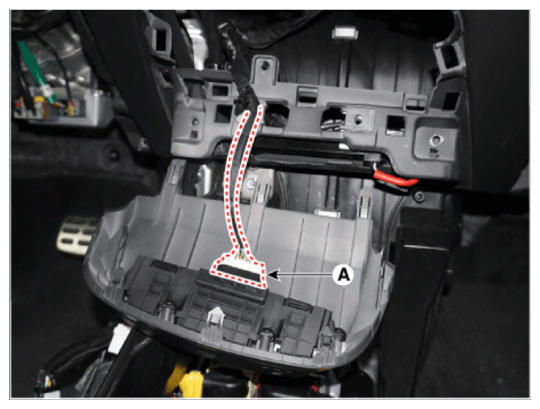

8. Disconnect the crash pad lower switch complete connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

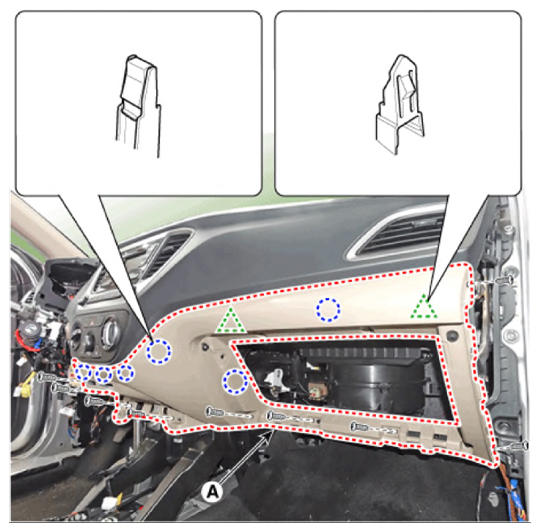

9. After loosening the mounting screws remove the glove box upper cover assembly (A).

   Courtesy of HYUNDAI MOTOR AMERICA

10. To install, reverse the removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips (or pin - type retainers).
