Rear Speaker

  1. Remove the rear door trim.

    (Refer to Body - "REAR DOOR TRIM ")

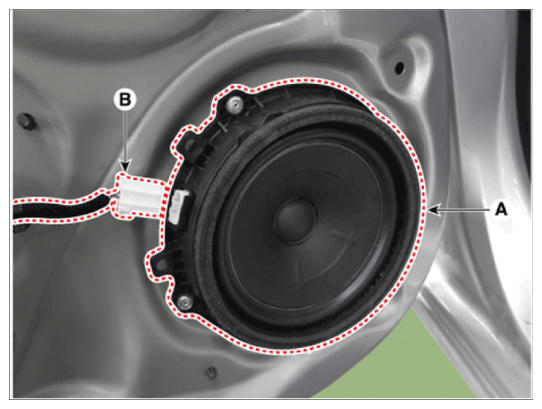

  2. Remove the rear speaker (A) after disconnecting the connector (B) and removing the mounting rivets (4EA).
G14078593Courtesy of HYUNDAI MOTOR AMERICA
