[Room Lamp]
- Disconnect the negative (-) battery terminal.

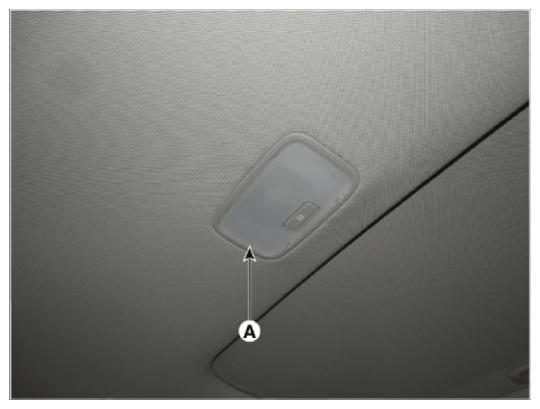

- Using a screwdriver or remover, Separate the room lamp lens (A) from the room lamp.CAUTION:
- Put on gloves to prevent hand injuries.
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.

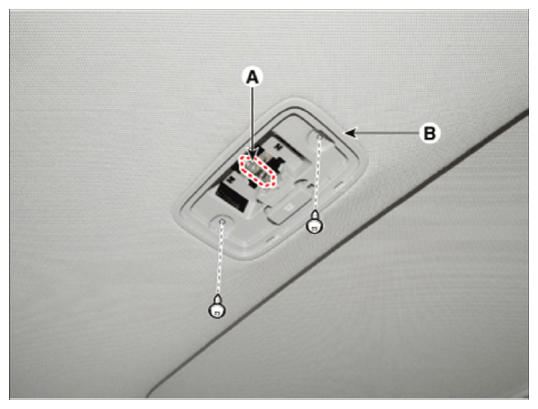

- If it is necessary to replace the bulb, remove the bulb (A) after disengaging the room lamp lens.
- Disengage the room lamp (B) after loosening the mounting screws.NOTE:

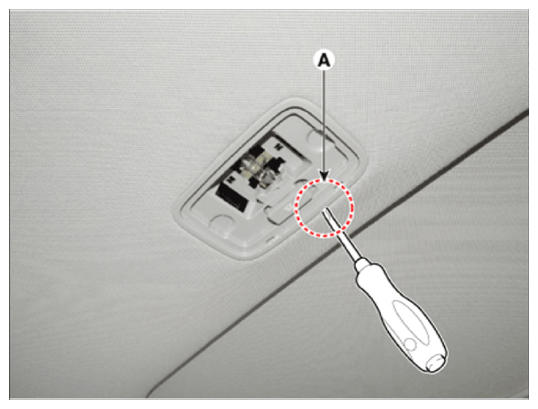

- When removing the room lamp, be careful of the direction in which the tool is inserted.
- Use caution when inserting the tool in the opposite direction, as the room lamp is damaged.

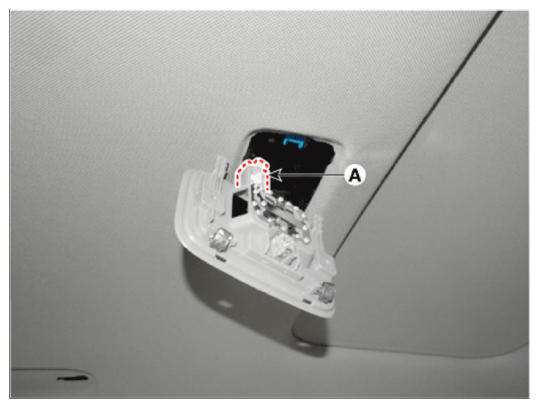

- Remove the room lamp assembly after disconnect the room lamp connector.
