Front Fog Lamp Aiming

The front fog lamps should be aimed as the same manner of the head lamps aiming.

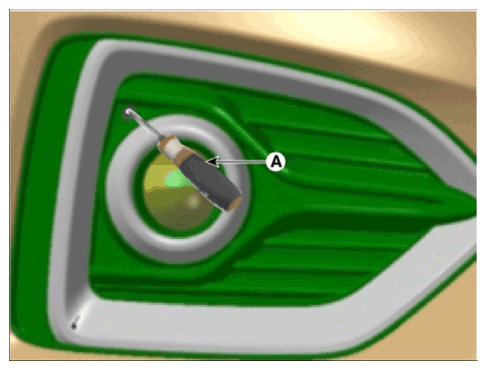

With the front fog lamps and battery normal condition, aim the front fog lamps by turning the adjusting screw hole (A) with a driver.

Courtesy of HYUNDAI MOTOR AMERICA
