[North America]
| Specifications | Vehicle condition | H1 | H3 | W1 | W3 | L |
|---|---|---|---|---|---|---|
| Standard | Without driver | 27.0 (687) | 15.8 (402) | 54.9 (1394) | 55.3 (1405) | Refer to aiming condition |
| With driver | 26.7 (679) | 15.5 (394) | 54.9 (1394) | |||
| Option | Without driver | 27.3 (695) | - | 55.0 (1397) | - | |
| With driver | 27.0 (687) | 55.0 (1397) |

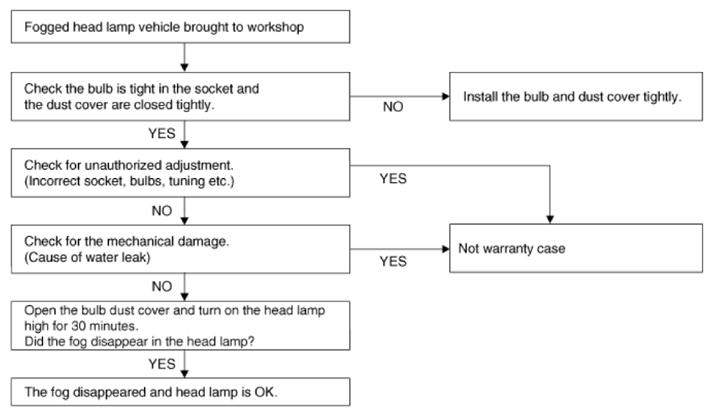

- Head Lamp (Low beam)
- Turn the low beam on without driver aboard.

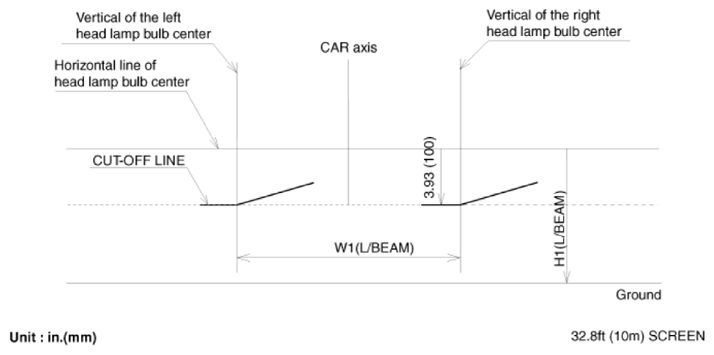

- The cut-off line should be projected in the cut-off line shown in the illustration below.
- When aiming the low beam, vertical aiming should be adjusted after adjusting the horizontal aiming.
- If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.
- Turn the front fog lamp on without the driver aboard.

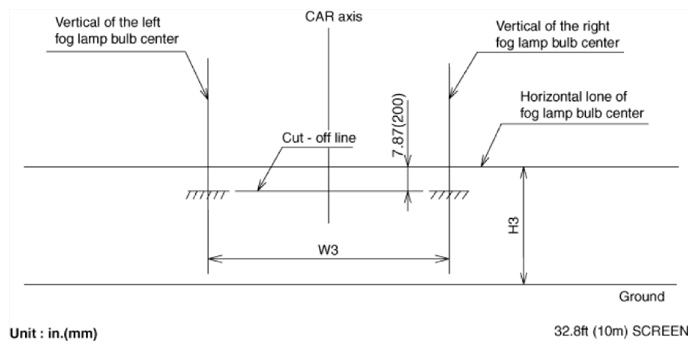

The cut-off line should be projected in the allowable range (shaded region)
