Description And Operation: Description

  1. BI-FUNCTION
    1. Definition
      • A headlamp with integrated functions of high and low beam.
      • The light is controlled by rotating the shield inserted to the lens (A solenoid is adopted)

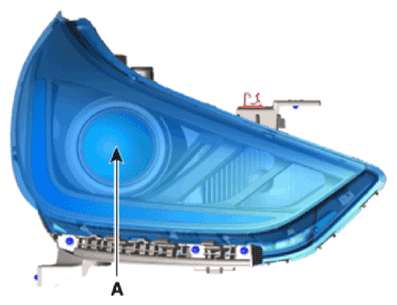

      G14078876Courtesy of HYUNDAI MOTOR AMERICA
    2. Structure and mechanism
      • Case of working as a low beam

        The light illuminates to the restricted area of low beam by blocking the light with the stopped shield.

      • Case of working as a high beam

        The light is not blocked by the open shield and the light illuminates to the area of high beam.

  2. Static Bending Light (SBL)
    1. Definition
      • Acquires visibility in corner when turning at night.
      • L/R Static Bending Lamp is turned ON/OFF based on the vehicle speed and steering wheel angle.

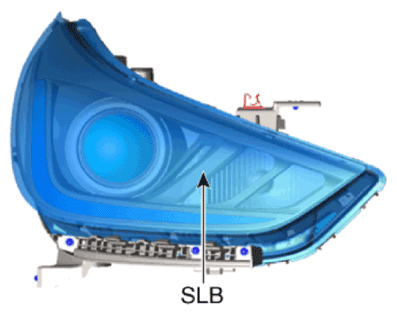

      G14078877Courtesy of HYUNDAI MOTOR AMERICA
    2. Vehicle Input Factors: Vehicle speed, steering wheel angle

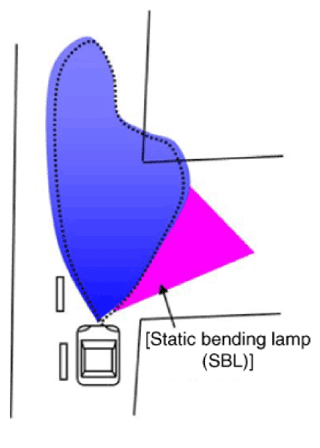

      G14078878Courtesy of HYUNDAI MOTOR AMERICA

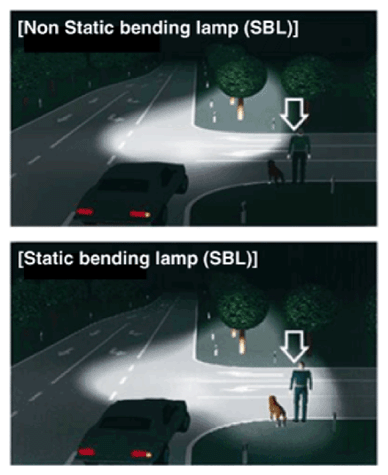

      G14078879Courtesy of HYUNDAI MOTOR AMERICA
