Home >> Hyundai >> 2021 >> Accent SEL >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Exterior Lights >> Lighting System >> Fog Lamps >> Repair Procedures >> Removal

Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the front bumper.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

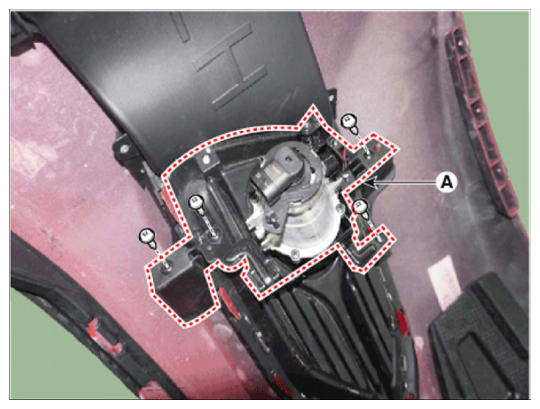

  3. Remove the front fog lamp assembly (A) after loosening the mounting screws (4EA).
    G14078914Courtesy of HYUNDAI MOTOR AMERICA

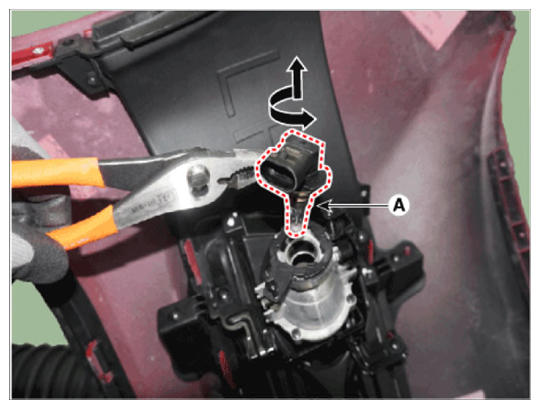

  4. Remove the front fog lamp (A) by turning in the counter clock-wise direction after disconnecting the connector.
    G14078915Courtesy of HYUNDAI MOTOR AMERICA
