Indirect Control Solenoid
WARNING: This page is about a different variant/trim than selected.

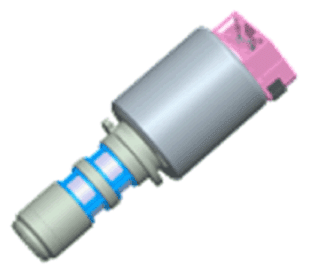

Driven Pulley Control Valve (Secondary_VFS)/Drive Pulley Control Valve (Primary_VFS)/Line Pressure Control Valve (Line_VFS)
| Item | Specification |
|---|---|
| Control type | N/H (Normally High) |
| Control pressure kpa (kgf/cm2 , psi) | 0 - 956.14 ± 14.71 (0 - 9.75 ± 0.15, 0 - 138.68 ± 2.13) |
| Current (mA) | 0 - 1.100 |
| Coil resistance (Ω) | 5.3 ± 0.3 |

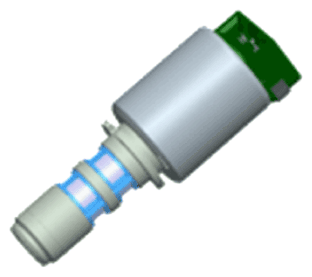

Damper Clutch Control Solenoid Valve (Damper/C_VFS)
| Item | Specification |
|---|---|
| Control type | N/L (Normally Low) |
| Control pressure kpa (kgf/cm2 , psi) | 0 - 956.14 ± 14.71 (0 - 9.75 ± 0.15, 0 - 138.68 ± 2.13) |
| Current (mA) | 0 - 1.100 |
| Coil resistance (Ω) | 5.3 ± 0.3 |
