Description And Operation: Description
WARNING: This page is about a different variant/trim than selected.

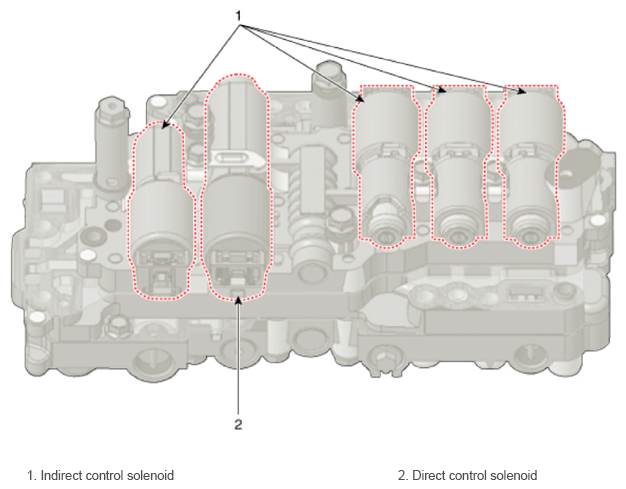

There are four indirect solenoid valves and one direct solenoid valve mounted to the valve body in the oil fan.
Each indirect solenoid valve controls a riven pulley control valve (Secondary_VFS), drive pulley control valve (Primary_VFS), line pressure control valve (Line_VFS), damper clutch control solenoid valve (Damper/C_VFS).
Direct solenoid valve controls drive/reverse clutch control solenoid valve (Clutch/Brake_VFS).
