Components Location

WARNING: This page is about a different variant/trim than selected.

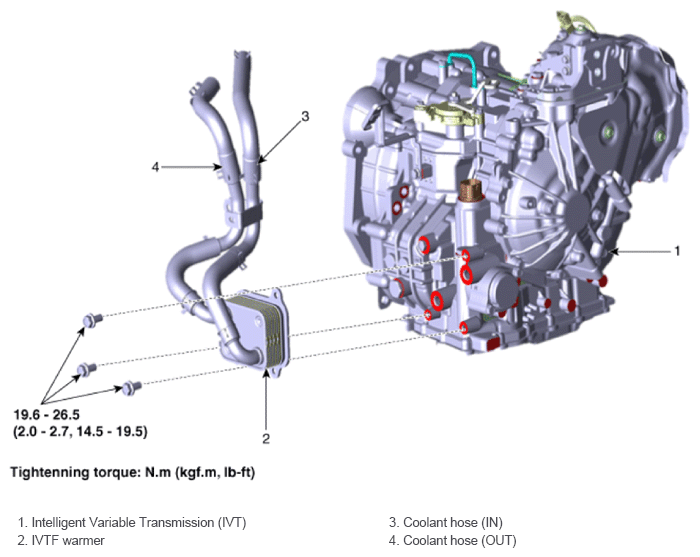

Fig 1: Transmission (IVTF) Warmer Components Location With Torque Specification
G14077330Courtesy of HYUNDAI MOTOR AMERICA
