Components Location

WARNING: This page is about a different variant/trim than selected.

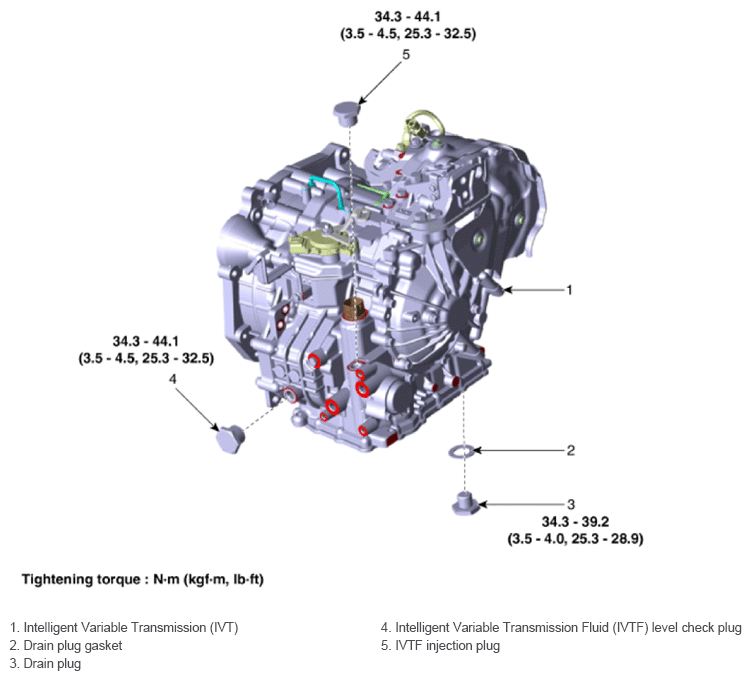

Fig 1: Transmission (IVT) Fluid Components Location With Torque Specifications
G14077317Courtesy of HYUNDAI MOTOR AMERICA
