Description And Operation: Operation
WARNING: This page is about a different variant/trim than selected.

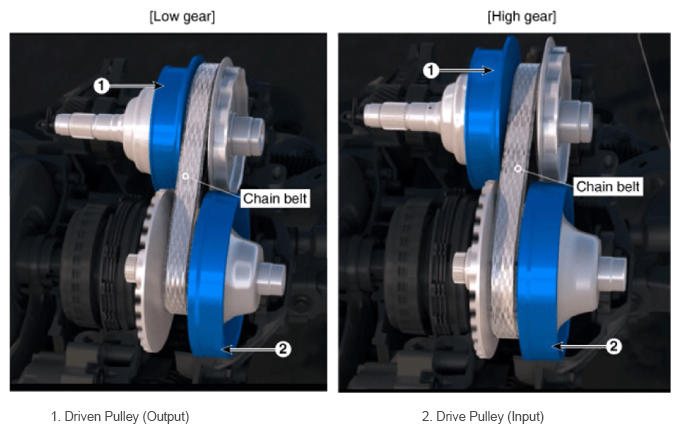

IVT consists of a chain belt and two cone-shaped pulleys that transmit power.
It shift gears by changing the contact radius of the pulleys with hydraulic pressure according to driving conditions.
 Courtesy of HYUNDAI MOTOR AMERICA
|
