Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

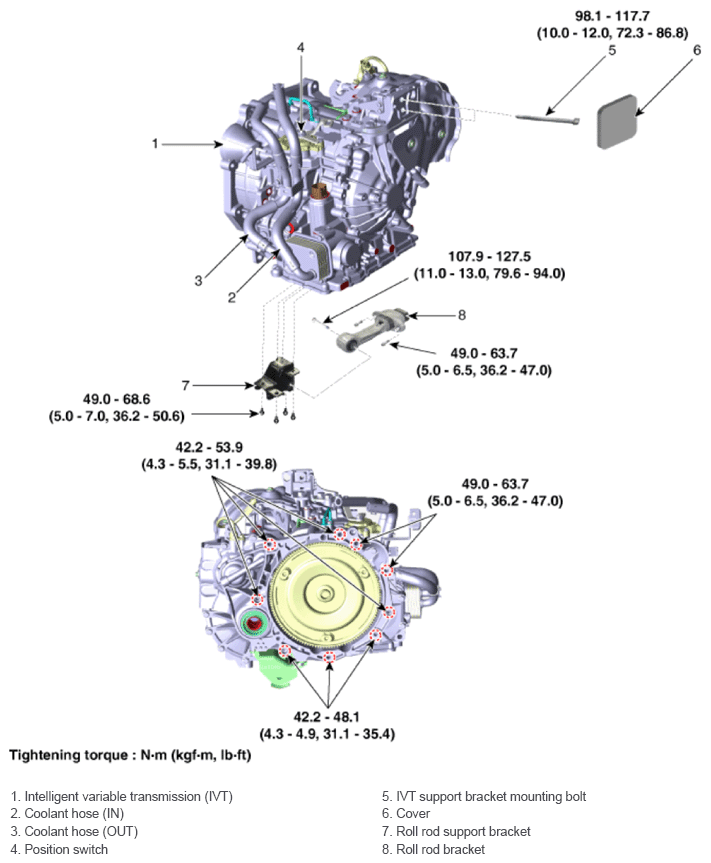

Fig 1: Intelligent Variable Transmission Components Location With Torque Specifications
G14077287Courtesy of HYUNDAI MOTOR AMERICA
