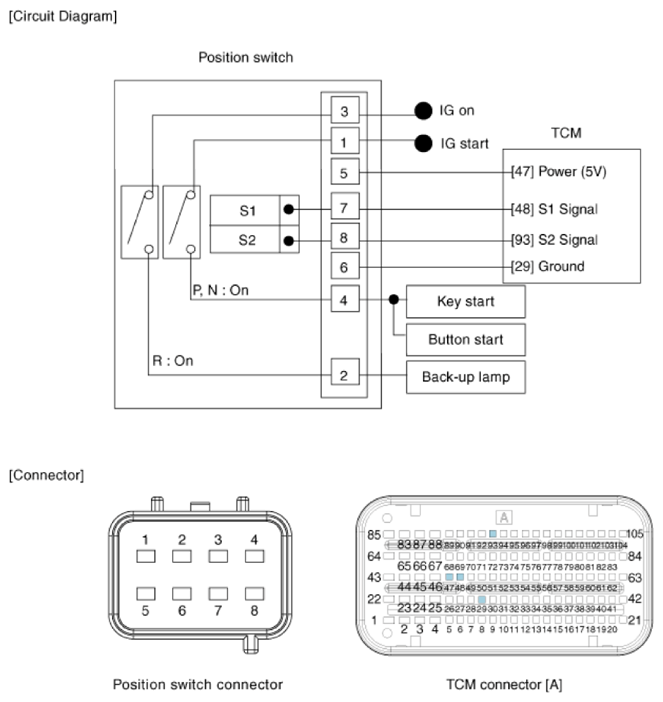

Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

G14077242

Courtesy of HYUNDAI MOTOR AMERICA
