Special Service Tools
WARNING: This page is about a different variant/trim than selected.
| Tool Name/Number | Illustration | Description |
|---|---|---|
| Engine support fixture (bar) 09200-3N000 |
Used for holding engine assembly when removing/installing transmission | |
| Engine support fixture (adapter) 09200-4X000 |
Used for holding engine assembly when removing/installing transaxle Used with the bar (09200-3N000) and supporter (09200-2S000) * Refer to the engine support fixture assembly drawing below. |
|
| Oil seal installer 09452-26100 |
Installation of transaxle case oil seal. Used with the handle (09231-H1100) |
|
| Handle 09231-H1100 |
Installation of transaxle case oil seal. Used with the installer (09452-26100) |
|
| Position switch guide pin 09480-A3800 |
Used for fixing "N" range when installing inhibitor switch |

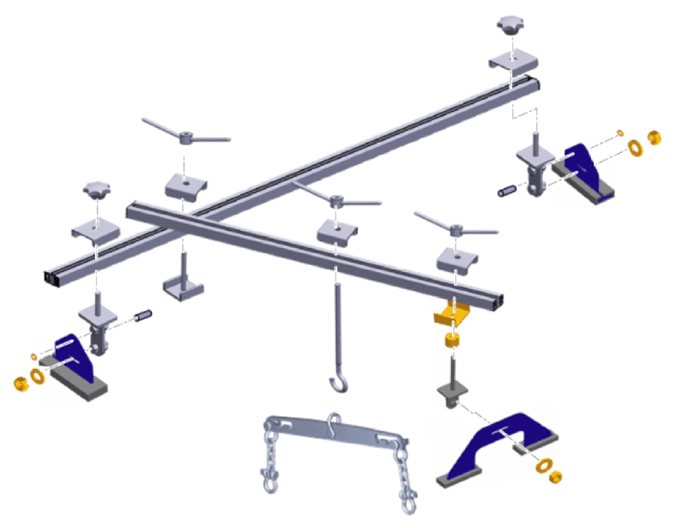

* Engine support fixture special tool assembly drawing
