Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel.

    (Refer to Body - "CLUSTER FASCIA PANEL ")

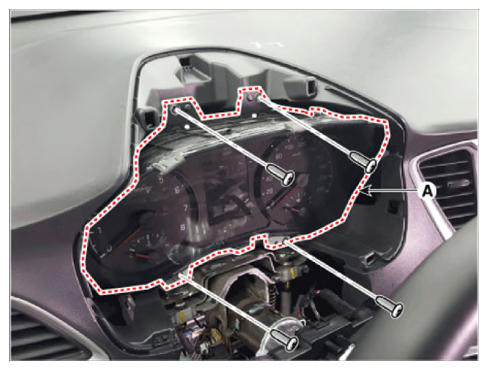

  3. Remove the cluster (A) from the housing after loosening the mounting screws.
    G14078718Courtesy of HYUNDAI MOTOR AMERICA

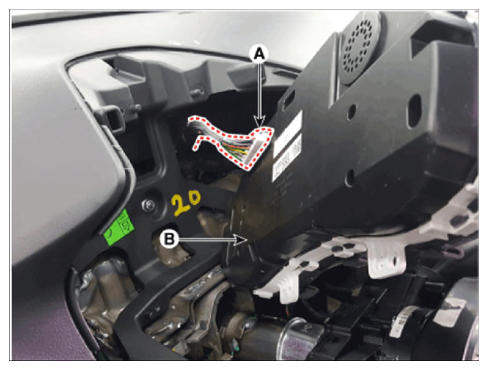

  4. Disconnect the cluster connector (A) and then remove the cluster (B).
    G14078719Courtesy of HYUNDAI MOTOR AMERICA
