Repair Procedures: Replacement

Information

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Remove the cowl side trim.

   (Refer to Interior Trim - "COWL SIDE TRIM ")

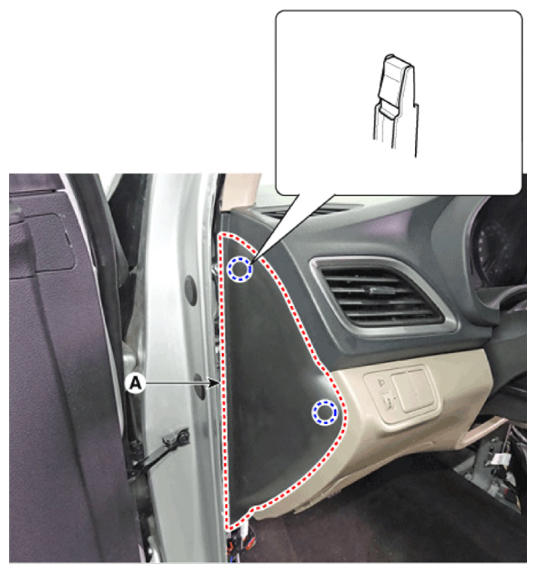

2. Using a screwdriver or remover, remove the crash pad side cover [LH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

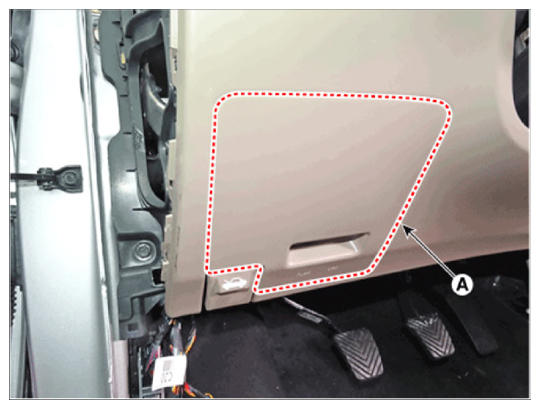

3. Remove the fuse box cover (A).

   Courtesy of HYUNDAI MOTOR AMERICA

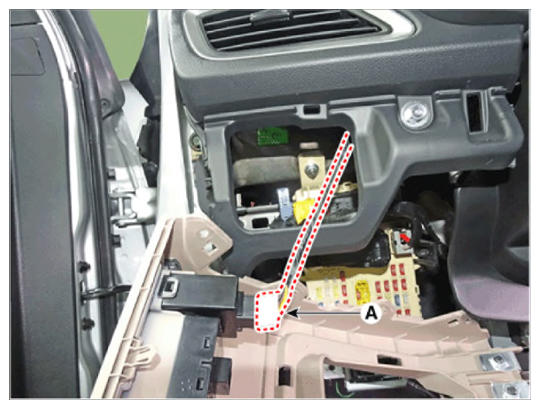

4. Disconnect the hood latch release handle cable (A).

   Courtesy of HYUNDAI MOTOR AMERICA

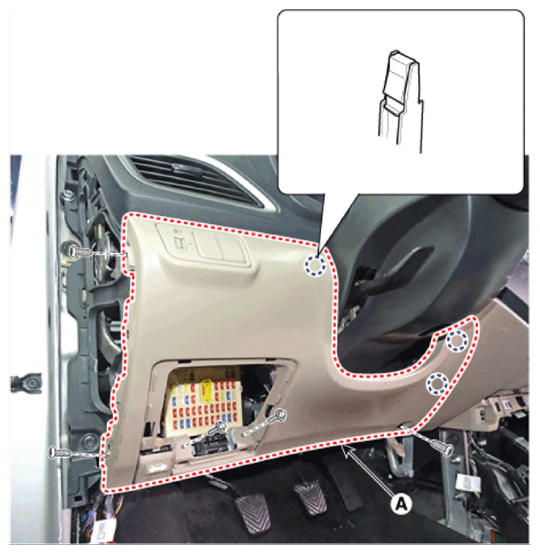

5. Loosen the mounting screws and remove the crash pad lower panel (A).

   Courtesy of HYUNDAI MOTOR AMERICA

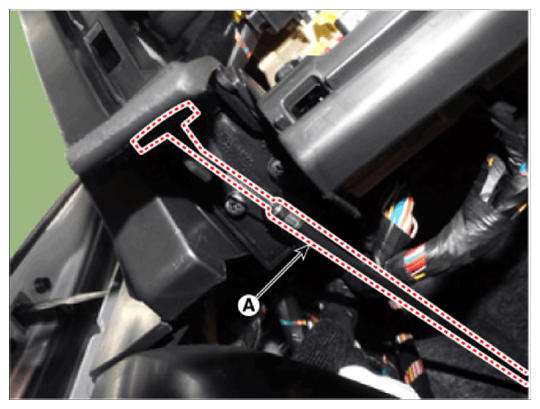

6. Disconnect the connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

7. To install, reverse the removal procedure.

   Information

   • Make sure the connector are connected in properly.
   • Replace any damaged clips (or pin - type retainers).
