Repair Procedures: Replacement

Information

• When removing with a flat - tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the negative (-) battery terminal.
2. Recover the refrigerant with a recovery/recycling/charging station.
3. Remove the cowl top cover.

   (Refer to COWL TOP COVER - "REPAIR PROCEDURES ")

4. Disconnect the steering column connectors.

   (Refer to Steering System - "MDPS ASSEMBLY ")

5. Loosen the mounting nuts and through bolts in the frontal area and lower the steering column.

   (Refer to Steering System - "MDPS ASSEMBLY ")

6. Disconnect the expansion valve from the evaporator core.

   (Refer to Heating, Ventilation and air Conditioning - "HEATER UNIT ")

7. Disconnect the inlet and outlet heater hoses from the heater unit.

   (Refer to Heating, Ventilation and air Conditioning - "HEATER UNIT ")

8. Remove both sides of front seat assembly.

   (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

9. Remove the main crash pad assembly.

   (Refer to "MAIN CRASH PAD ASSEMBLY ")

10. Remove the shift lever assembly.

    (Refer to Manual Transaxle System - "SHIFT LEVER ")

    (Refer to Automatic Transaxle System - "SHIFT LEVER ")

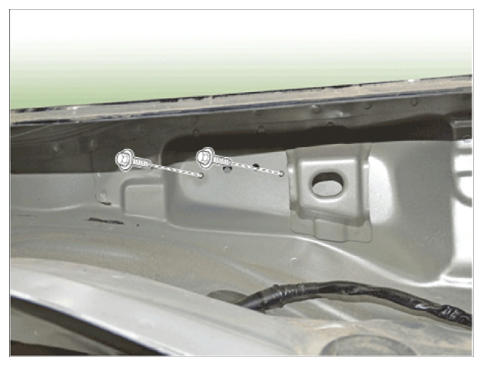

11. Loosen the cowl cross bar mounting bolts.

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

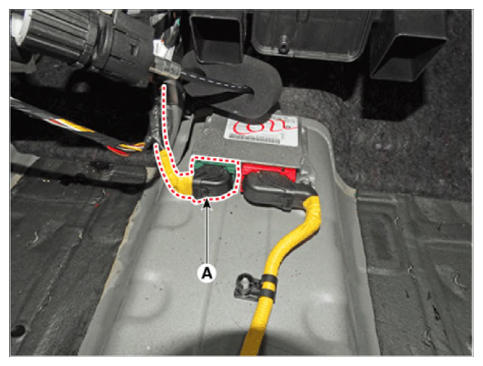

12. Disconnect the airbag control module (SRSCM) connector (A).

    Courtesy of HYUNDAI MOTOR AMERICA

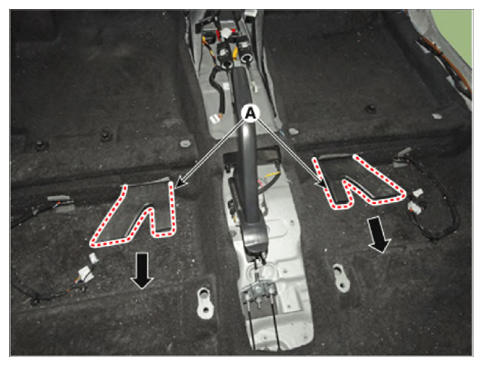

13. Remove the rear air duct (A)

    Courtesy of HYUNDAI MOTOR AMERICA

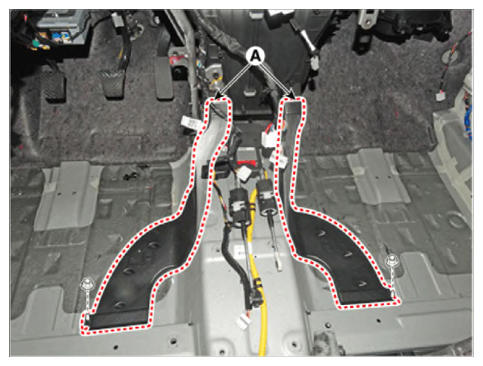

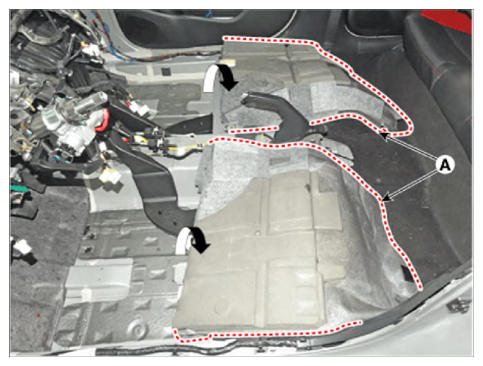

14. Separate the floor carpet (A) to obtain space for removing the rear heating duct.

    Courtesy of HYUNDAI MOTOR AMERICA

15. Loosen the mounting nuts and remove the front air duct (A).

    Courtesy of HYUNDAI MOTOR AMERICA

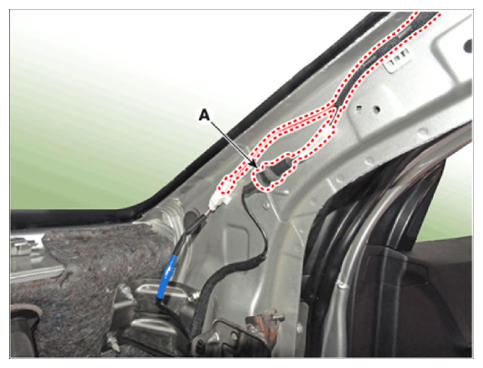

16. Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.

    Courtesy of HYUNDAI MOTOR AMERICA

17. Disconnect the diagnosis connector (A).

    Courtesy of HYUNDAI MOTOR AMERICA

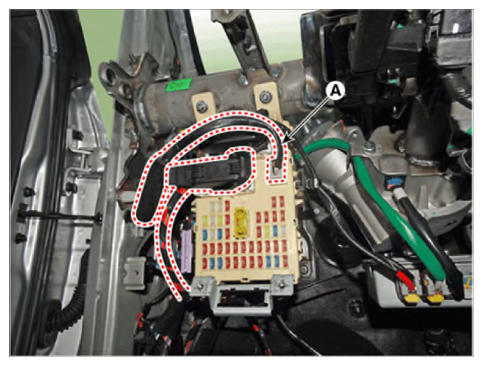

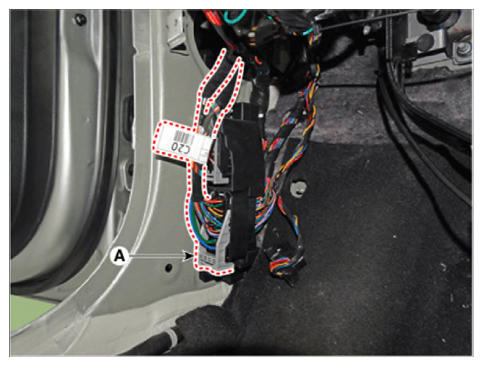

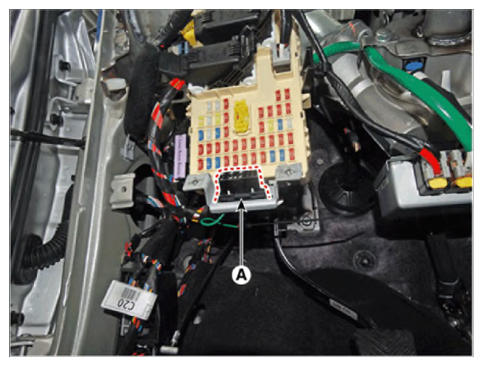

18. Disconnect the passenger compartment junction box connectors (A).

    Courtesy of HYUNDAI MOTOR AMERICA

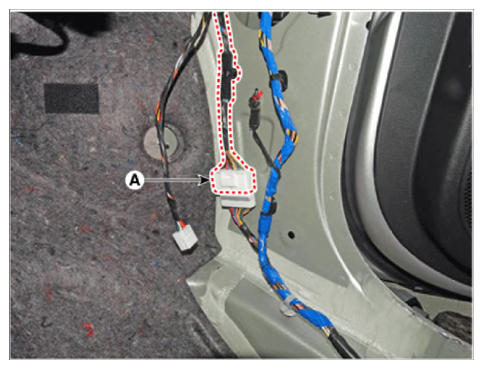

19. Disconnect the multi box connectors (A).

    [Driver's]

    Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

    Courtesy of HYUNDAI MOTOR AMERICA

20. Disconnect the heater and blower unit connector.
    1. Disconnect the mode actuator connector (A).

       Courtesy of HYUNDAI MOTOR AMERICA

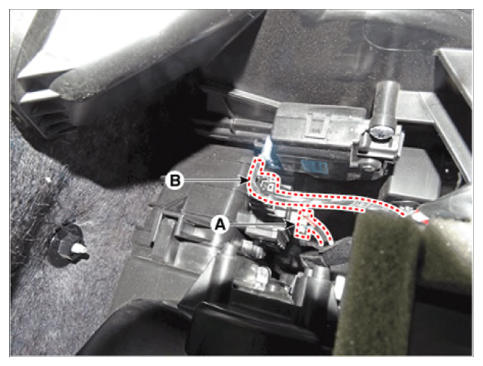

    2. Disconnect the evaporator temperature sensor (A), and power mosfet (B).

       Courtesy of HYUNDAI MOTOR AMERICA

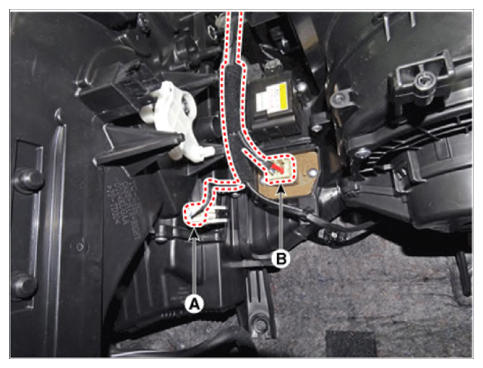

    3. Disconnect the cluster ionizer (A) and intake actuator connector (B).

       Courtesy of HYUNDAI MOTOR AMERICA

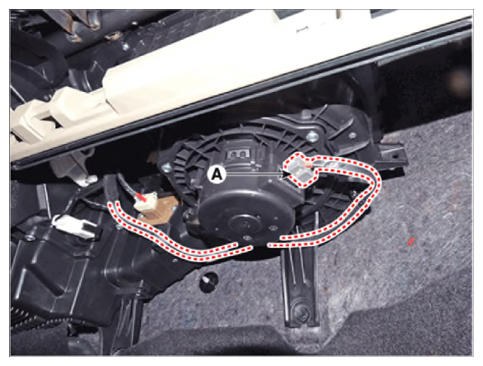

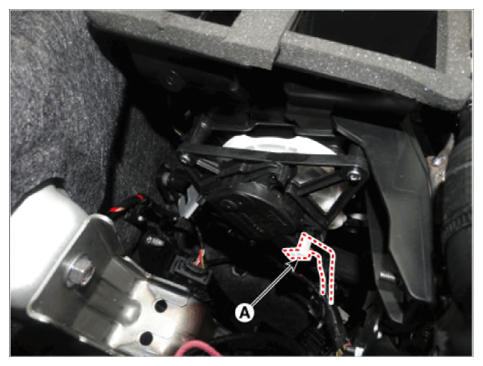

    4. Disconnect the blower motor connector (A).

    Courtesy of HYUNDAI MOTOR AMERICA

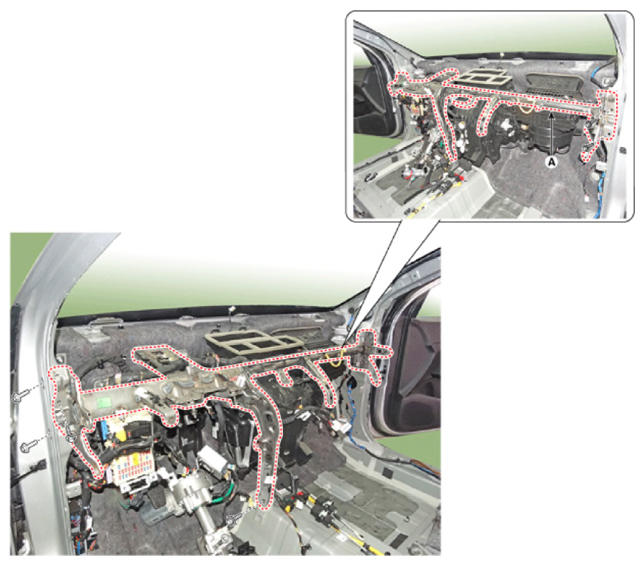

21. After loosening the bolts and nuts, remove the cowl cross bar assembly (A).

    Courtesy of HYUNDAI MOTOR AMERICA

22. To install, reverse the removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin - type retainers).
