Repair Procedures: Removal

Loosen the wheel nuts slightly.
Raise the vehicle, and make sure it is securely supported.

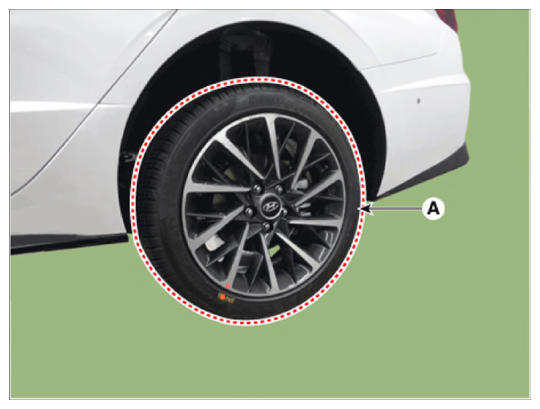

Remove the rear wheel and tire (A) from front hub.
Tightening torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)
NOTE:
- Be careful not to damage the hub bolts when removing the rear wheel and tire (A).
Courtesy of HYUNDAI MOTOR AMERICA

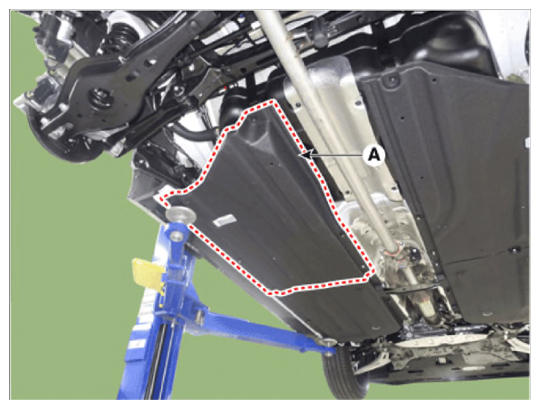

Remove the under cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

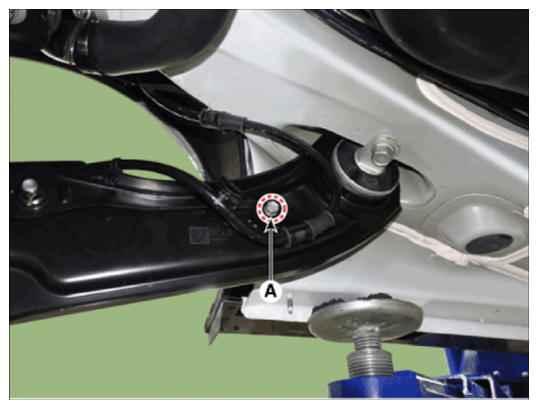

Loosen the bolt (A) and then remove the rear wheel speed sensor cable bracket.
Tightening torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

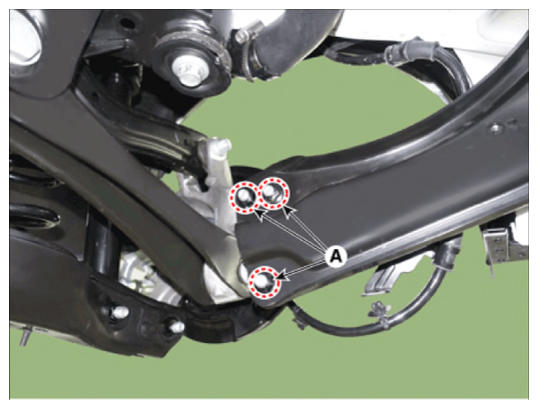

Loosen the nut (A) and then disconnect the trailing arm from the rear axle.
Tightening torque:

98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA

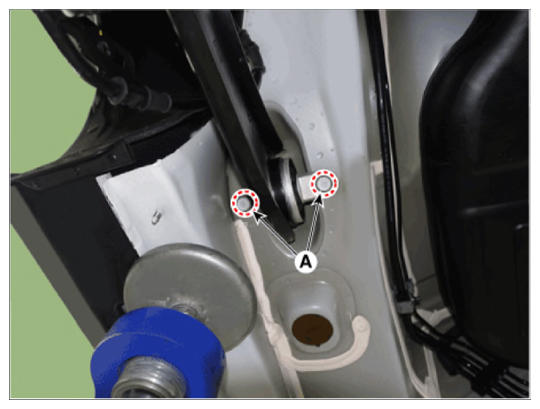

Loosen the bolt (A) and then remove the trailing arm from the body.
Tightening torque:

117.7 - 137.3 N.m (12.0 - 14.0 kgf.m, 86.8 - 101.3 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
