Repair Procedures: Reassembly

  1. To reassembly, reverse the disassembly procedure.

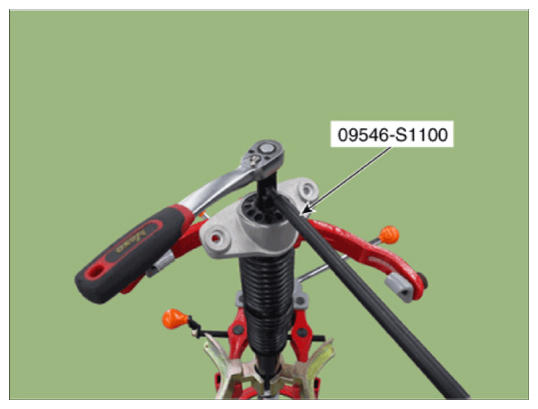

  2. Using SST (09546-S1100), install the lock nut.
    NOTE:
    • Do not reuse the self locking nut.

    Tightening torque:

    19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb-ft)

    G14525720Courtesy of HYUNDAI MOTOR AMERICA

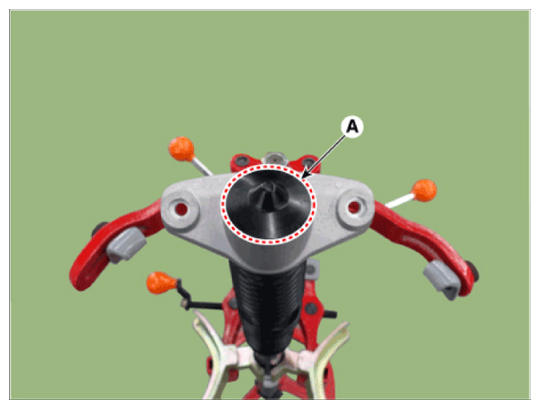

  3. Install the lock nut cover (A).
    G14525721Courtesy of HYUNDAI MOTOR AMERICA
