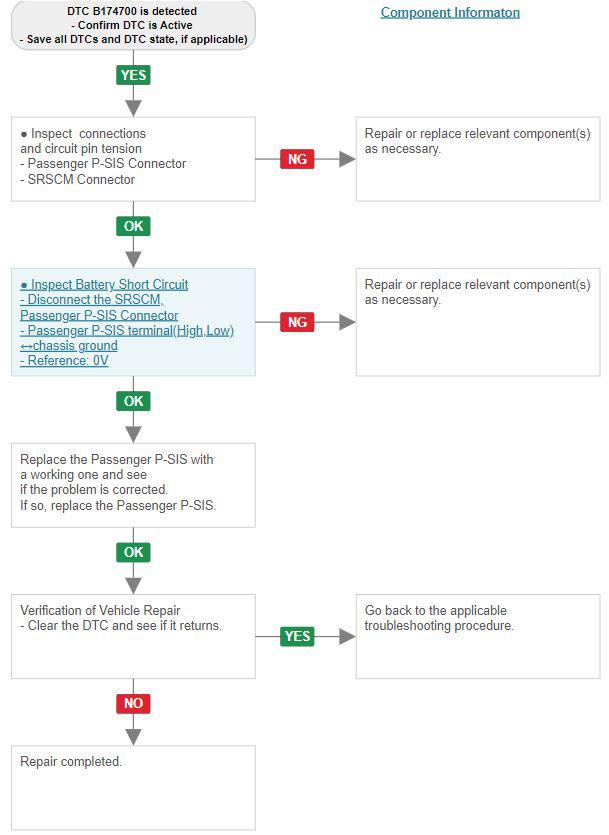

Home >> Hyundai >> 2020 >> Sonata SEL >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Airbag System Diagnosis (Except HEV) (3 Of 3) >> DTC B1747-00: P-SIS (Side Impact Sensor, Pressure) Front Passenger Short To Battery >> Troubleshooting >> Diagnostic Flowchart
