Monitor Scantool Data

1. Ignition switch OFF, connect GDS.

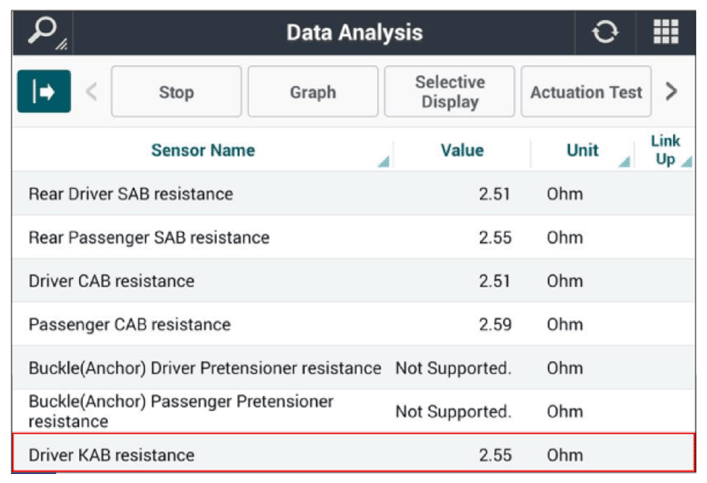

2. Ignition switch ON and the engine OFF, select "Current Data" mode.
3. Monitor the "Driver KAB resistance" parameter on the GDS.

Courtesy of HYUNDAI MOTOR AMERICA

Reference:  Resistance of "Driver KAB" is between 1.0Ω and 7.0Ω

Reference:  In a case of an open in the Driver KAB circuit: FAIL

In a case of a short to battery in the Driver KAB circuit: FAIL

In a case of a short to ground in the Driver KAB circuit: FAIL
