Airbag System Diagnosis (Except HEV) (3 Of 3)
>>
DTC B16D2-00: Internal Fault - Roll Sensor (Gyro)
>>
Troubleshooting
>>

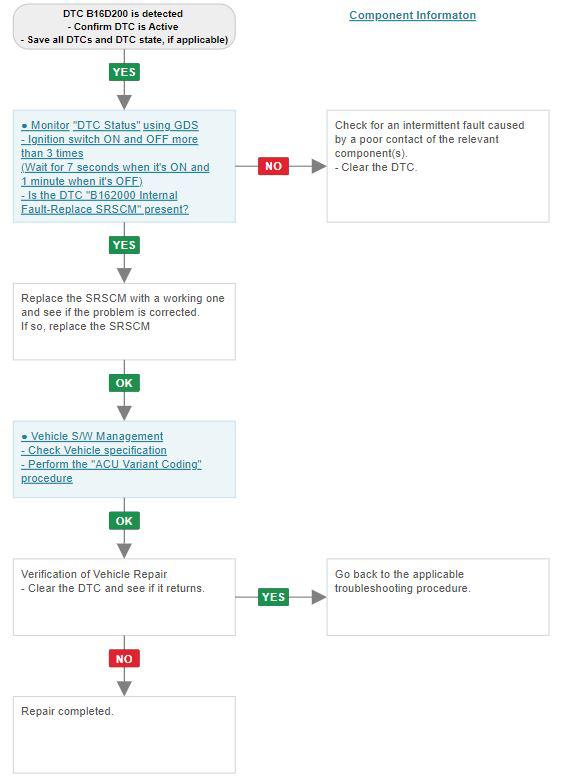

Diagnostic Flowchart
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
If you strike or spin the SRSCM at the Ignition switch ON state, the seat-belt pretensioner, curtain-airbag or side-airbag could be unfolded and bring on danger. Handle it with care.
